Battery Isolator Switch - Protects batteries and prevents electrical drain for vehicles and boats (DC 12-48 V). Durable ABS housing with brass nut, easy-turn on/off operation, and rated 275 A continuous. Kit includes switch and 4 mounting bolts.
The Carbon Offroad Battery Isolator Switch delivers robust safety and power management, supporting up to a 275A continuous current for 12-48V systems.
Protect your battery and prevent electrical drain with our high-performance battery isolator switch. Ideal for vehicles and boats, this durable switch offers easy operation and versatile compatibility.
Current & Voltage
On/Off 2 positions, 275 A continuous at DC 12V, 455 A intermittent at DC 12V, 1250 A momentary at DC 12V.
Simple Operation
The switch can be disconnected and reconnected by simply turning the knob and is supplied with bolts.
Sturdy Construction
The switch is made of ABS plastic housing and solid brass nut, rust-proof, corrosion-resistant, durable, and safe to use.
Great Compatibility
The battery switch used on DC 12-48V systems to isolate and secure the electrical system.
Safety Protection
The battery switch eliminates any drain on the battery and safely disconnects it when the vehicle or boat is not in use.
Features
-
Current Rating: 275A continuous, 455A intermittent, 1250A momentary at DC 12V
-
Voltage Compatibility: DC 12-48V systems
-
Construction: ABS plastic housing and solid brass nut
-
Protection: Rust-proof, corrosion-resistant, and safe to use
-
Operation: Simple On/Off 2 position rotary knob
Contents

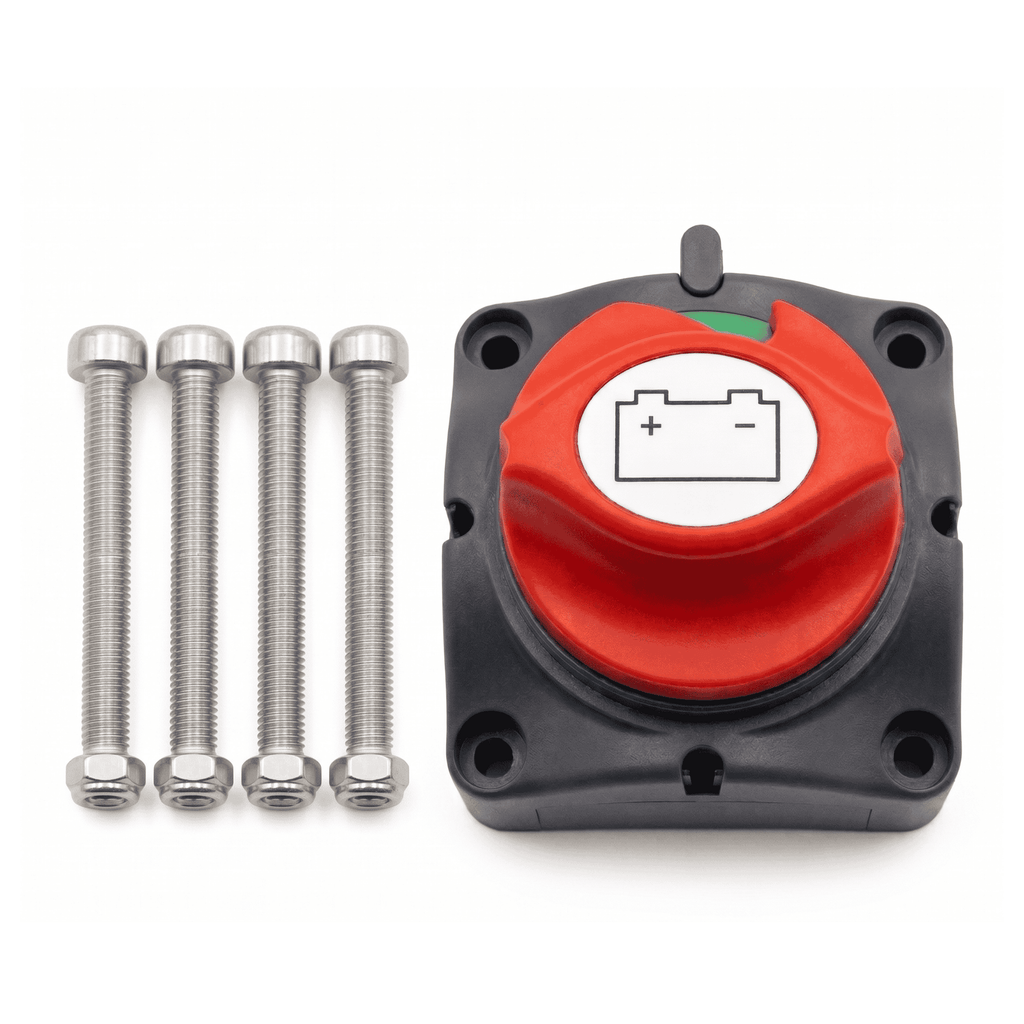

1 x Battery Isolator Switch
4 x Mounting bolts with nuts
| Feature |
Specification Metric (Imperial) |
| Max Current |
275A |
| Max Voltage |
48V |
| Switch Function |
ON-OFF |
| Termination Stud Size |
10mm (0.4") x 2 |
| Operating Temperature |
-25°C to 85°C (-13°F to 185°F) |
| Housing Colour |
BK-Black |
