20" Dual Row 36 Led Light Bar

Features

• Ultra Slim - 52.5mm depth for both Single Row & Dual Row Lightbars

• Flush Front Fascia with no Exposed Screws - Easy to clean & no chance of screws corroding

• Black anodised polyester powder coated extruded 6063 Aluminium housing with integrated heat-sink & pressure equalising vent

• Polycarbonate reflector focusing optic drive technology with Lexan polycarbonate lens

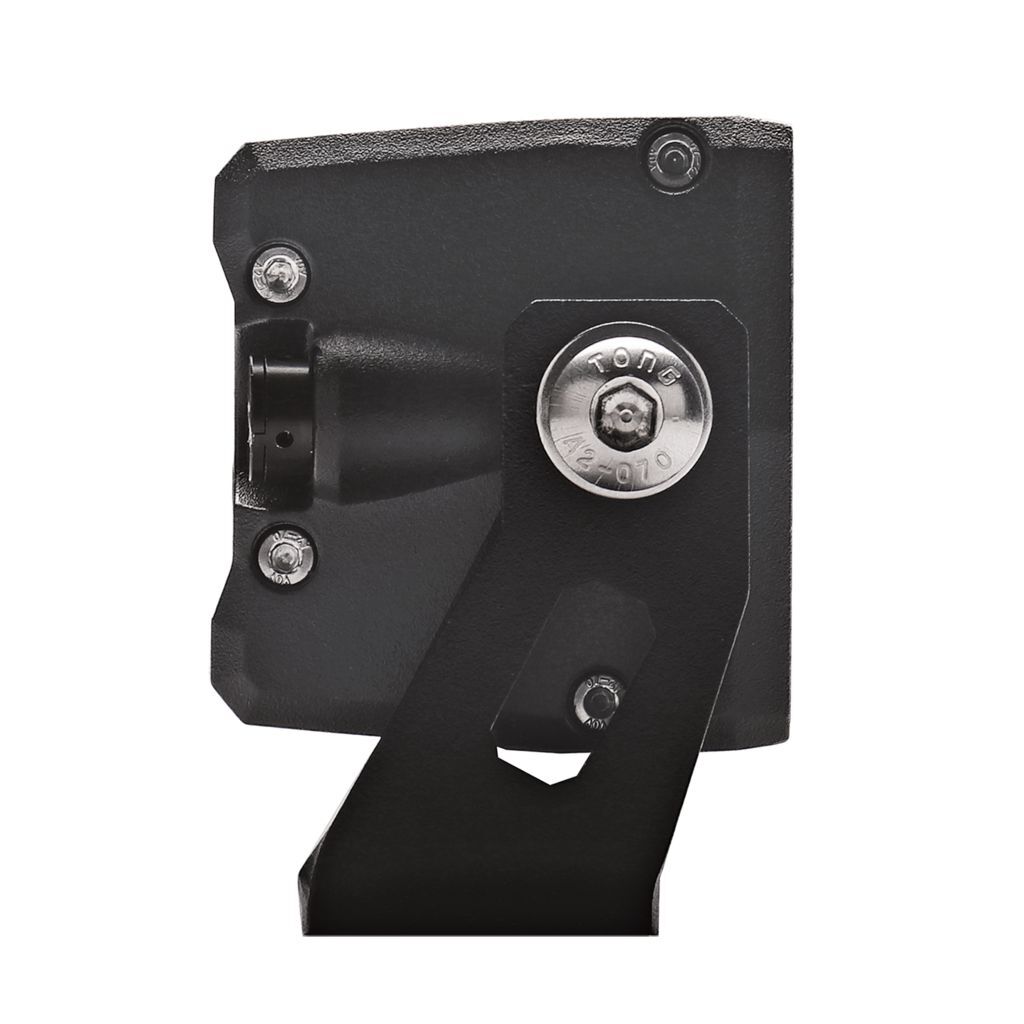

• Cross slider bracket assembly allows the bottom brackets to be positioned anywhere along bar’s length

• 500mm lead with 2 Pin deutsch plug

• Provided with:

  1. Bottom Mount Bracket - 6063 Aluminium

  2. Side Mount Bracket - SUS201 Stainless Steel

Specifications

• Combo beam

• 180W, 36 x 5W high intensity LP LED’s

• 16,200 Raw & 13,700 Effective Lumens & 6,000K

• 1 Lux @ 472m & 215,000cd peak beam intensity

• 9 – 36V Multi voltage

• Low Current Draw: 8A @ 12V & 3.8A @ 24V

• 522mm length

• Weight: 1.95kg

• ECE R112 approved
