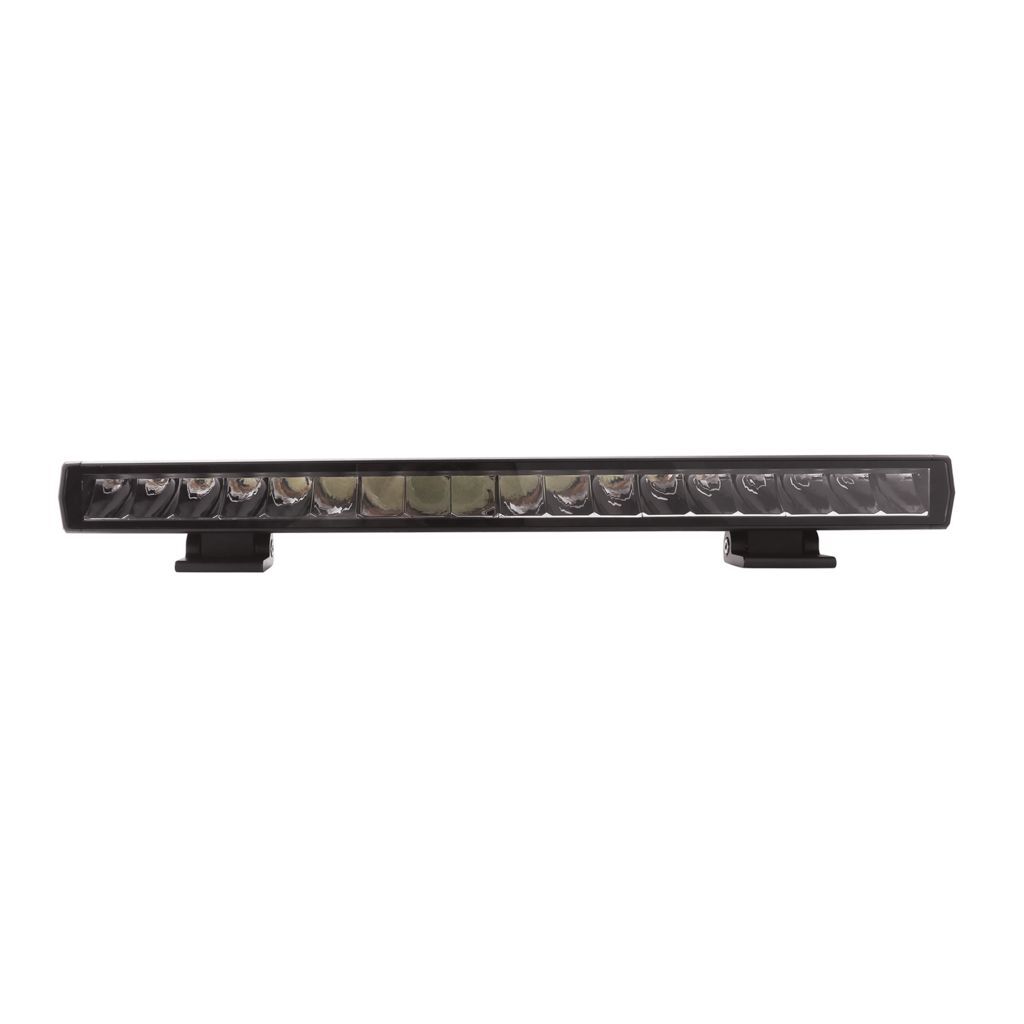

20" Single Row 18 Led Light Bar

Features

• Ultra Slim - 40.5mm Height For Single Row Lightbars ; 52.5mm Depth For Both Single Row ; Dual Row Lightbars

• Flush Front Fascia With No Exposed Screws - Easy To Clean ; No Chance Of Screws Corroding

• Black Anodised Polyester Powder Coated Extruded 6063 Aluminium Housing With Integrated Heat-Sink ; Pressure Equalising Vent

• Polycarbonate Reflector Focusing Optic Drive Technology With Lexan Polycarbonate Lens

• Cross Slider Bracket Assembly Allows The Bottom Brackets To Be Positioned Anywhere Along Bar Length

• 500mm Lead With 2 Pin Deutsch Plug

• Provided With:

  1. Bottom Mount Bracket - 6063 Aluminium

  2. Side Mount Bracket - Sus201 Stainless Steel

Specifications

• Driving Beam

• 180w, 18 X 10w High Intensity Lp Led

• 13,200 Raw ; 11,200 Effective Lumens

• 1 Lux @ 501m ; 315,000cd Peak Beam Intensity

• 9 36v Multi Voltage

• Current Draw: 8.2a @ 12v ; 3.6a @ 24v

• 520mm Length

• Weight: 1.46kg
