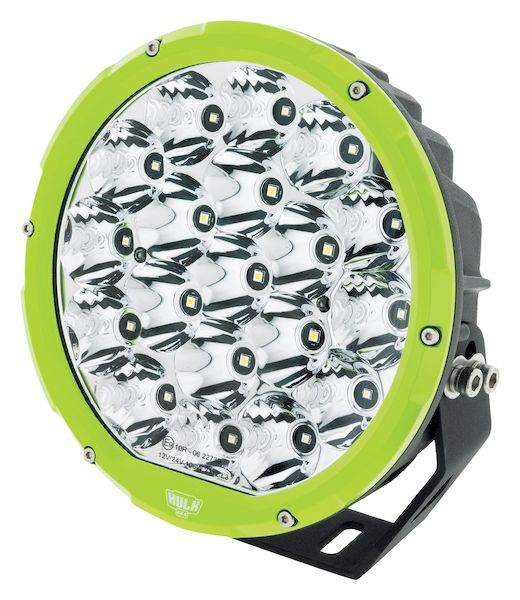

7" Round Led Driving Lamp Driving Beam (Green Bezel)

Green Bezel

• 9 - 36 Volt 106 Watt

• Driving Beam Pattern 25 Degrees

• 12 X 3 Watt High Intensity Lp Led's And 7 X 10 Watt High Intensity Lp Led's

• 11,000 Raw And 8,800 Effective Lumens And 6,000k

• 1 Lux @ 538m And 289,000cd Peak Beam Intensity

• Current Draw: 7.1amp @ 12 Volt And 3.4amp @ 24 Volt

• Combined Polycarbonate Reflector Focusing Optic Drive Technology With Lexan Polycarbonate Lens

• Integrated Electronic Thermal Management (Etm)

• Black Powder Coated Die Cast Aluminium (Adc12) Housing With Integrated Heat-Sink And Pressure Equalising Vent

• Stainless Steel (Sus304) Multiple Bolt Mount Bracket And Hardware

• 500mm Lead With 2 Pin Deutsch Plug

• Over And Under Voltage Protection

• Reverse Polarity Protection

• Uv, Water And Shock Resistant To 15g

• Anti Rust, Corrosion And Freezing Resistance

• 50,000 Hours Led Lifespan

• Ece R10 And Ce Approved

• Ip68 And Ip69k Rating

• Environment Temperature: -40°C ~ +60°C

• 2 Year Warranty

• Weight: 1.4kg
