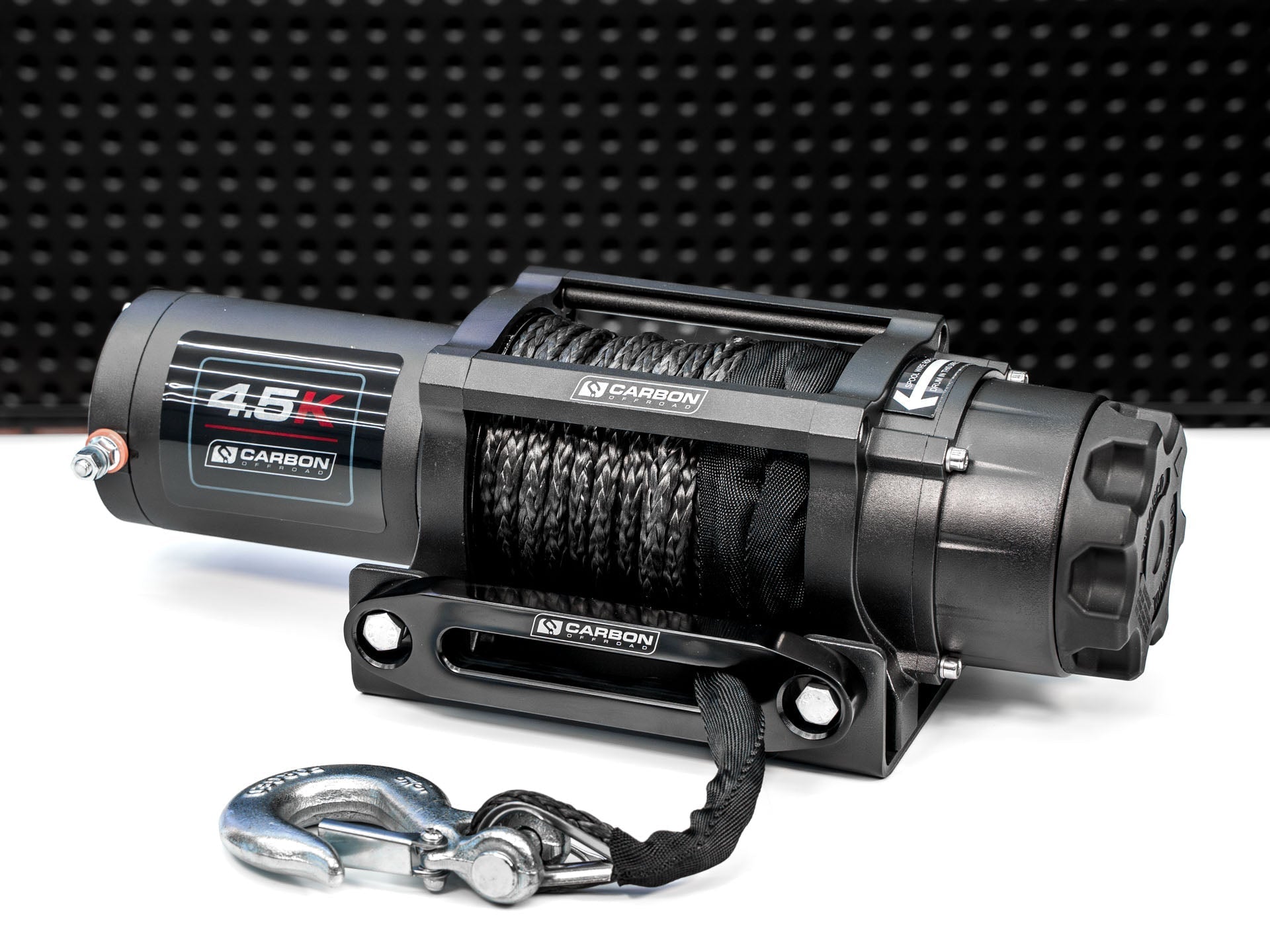

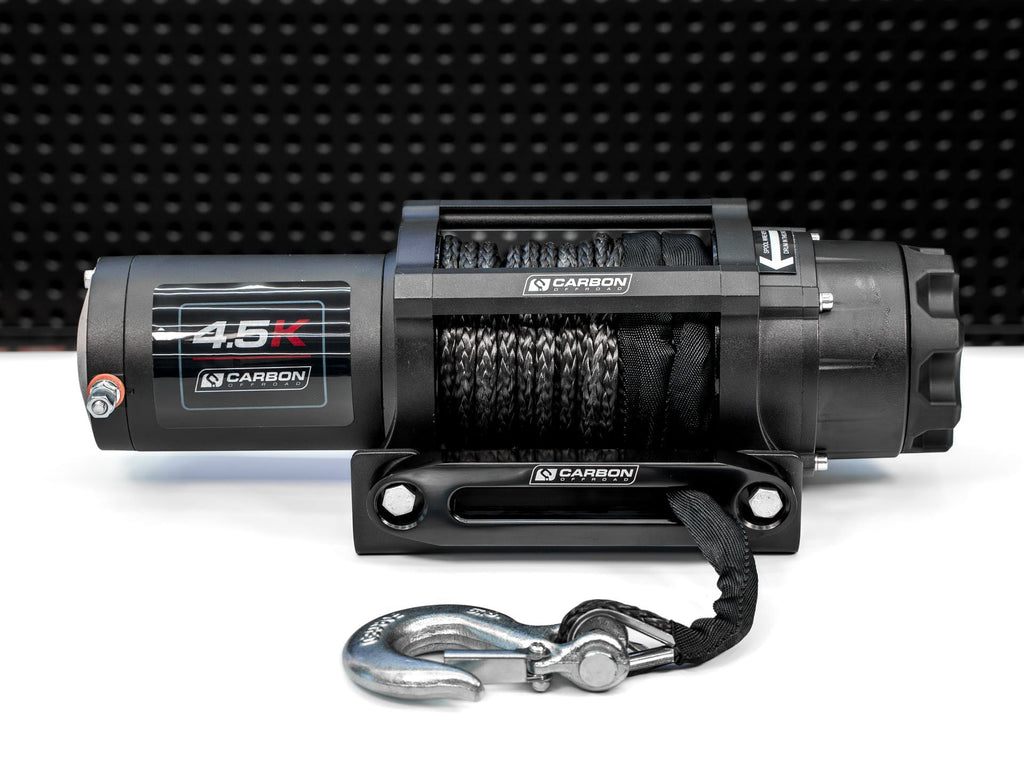

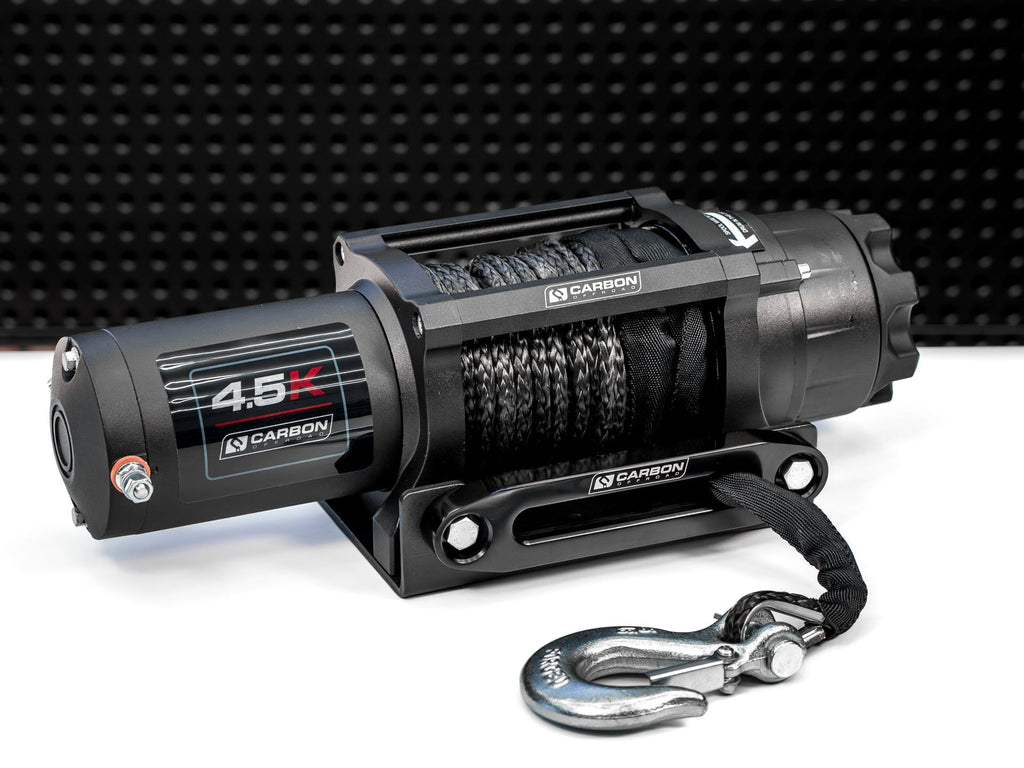

Carbon Offroad 4,500 Lb Atv/Utv Winch ‚Compact, Powerful, And Versatile
Upgrade Your Off-Road Adventures And Heavy-Duty Tasks With The Carbon Offroad 4,500 Lb Capacity Winch, Designed For Atvs, Utvs, Side-By-Sides, Car Trailers, And Equipment Transport.
Enhanced Design ; Performance
Since September 2021, This Winch Has Been Redesigned For Superior Durability And Ease Of Use, Featuring:
- Improved Clutch Handle Operation For Smoother Control
- Enhanced Sealing For Wet And Rugged Conditions
- Upgraded Components ; Finish For Long-Lasting Performance‚�All At The Same Great Price
Compact ; Easy To Mount
- Integrated Mounting Plate For Quick And Simple Installation
- Compatible With Trailers, Atvs, And Buggies
- Easily Secures To An Existing Pedestal Or Designated Winch Mount
Wireless Control For Maximum Convenience
- Includes Free Wireless Remote Control For Effortless Operation
- Also Features A Handlebar Mini-Rocker Switch For Direct Control From Your Atv
Versatile Applications
Ideal For A Wide Range Of Uses, Including:
- Small Car And Equipment Trailers
- Loading Heavy Equipment Into Vans
- Retrieving Stuck Atvs, Utvs, Or Buggies
- Pulling Boats (Tinnies) Onto Trailers
- Opening Cattle Gates On Livestock Trucks
Key Features:
-
4,500 Lb (2,040 Kg) Line Pull For Strong And Reliable Performance
-
Power In ; Out Operation With Load-Holding And Dynamic Braking
-
Sealed Permanent Magnet Motor For High Efficiency With Low Amp Draw
-
Full Metal 3-Stage Planetary Gear Train For Greater Pulling Force And Durability
-
Synthetic Rope For Lightweight, High-Strength, And Safer Winching
-
Aluminium Hawse Fairlead To Reduce Friction And Extend Rope Life
Specifications:
-
Model: Cw-45
-
Rated Line Pull: 4,500 Lbs (2,040 Kg)
-
Motor: 12v Dc, 1.9hp
-
Remote Control: Handlebar Mini-Rocker ; Wireless Remote (Included)
-
Geartrain: 3-Stage Planetary, 176:1 Ratio
-
Brake: Dynamic ; Mechanical
-
Synthetic Rope: 43' (13m) X 1/4 (6.35mm)
-
Mounting Bolt Pattern: 3.0 X 6.59 (76mm X 167mm)
-
Winch Dimensions: 14.9 X 4.7 X 4.5 (379mm X 120mm X 115mm)
-
Shipping Weight: 12.2 Kg
This Rugged, Compact, And High-Performance Winch Is A Must-Have For Anyone Looking To Tackle Tough Terrains Or Simplify Heavy Lifting.
Get Yours Today And Make Every Job Easier!
12v Dc Performance Specs (First Layer Of Drum)
|
Line Pull
Lbs.(Kgs.)
|
Line Speed
Ft./Min(M/Min.)
|
Motor
Current |
Pull By Layer
Layer/Lbs(Kgs.) |
| 0 |
20.4(6.2) |
31 Amps |
1/4500(2040) |
| 1000 |
14.2(4.3) |
65amps |
2/3750(1700) |
| 2000 |
10.9(3.3) |
96amps |
3/3510(1595) |
| 3000 |
7.7(2.4) |
125amps |
4/3300(1500) |
| 4500 |
4.9(1.5) |
175.Amps |
|
| |
|
|
|
