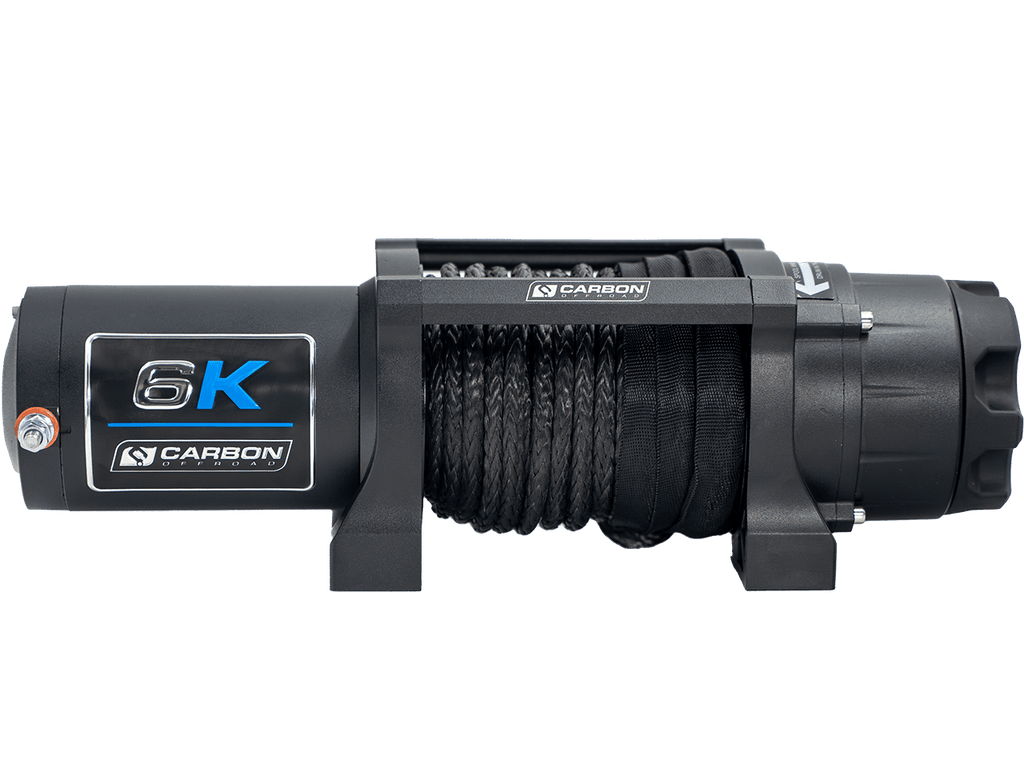

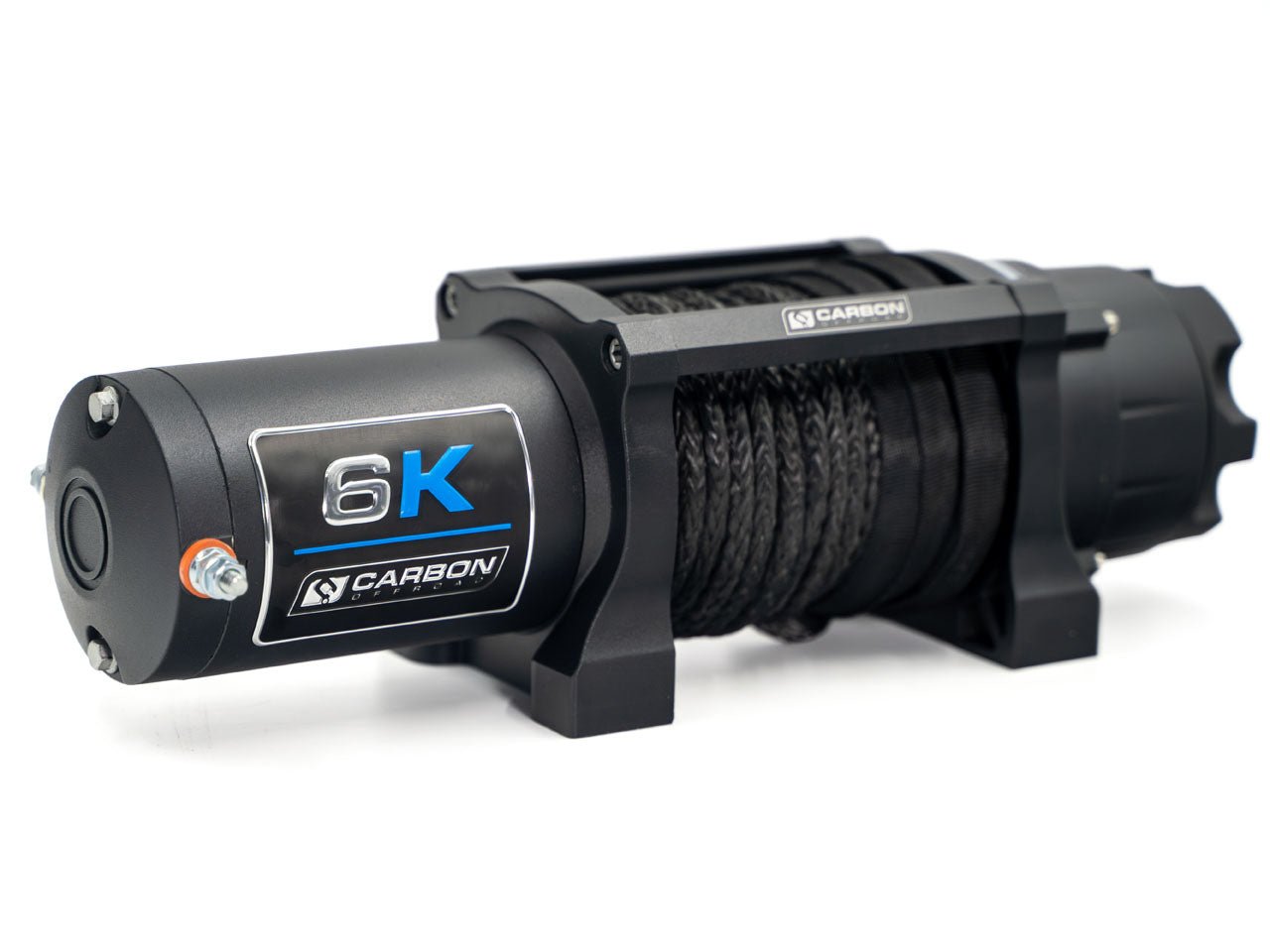

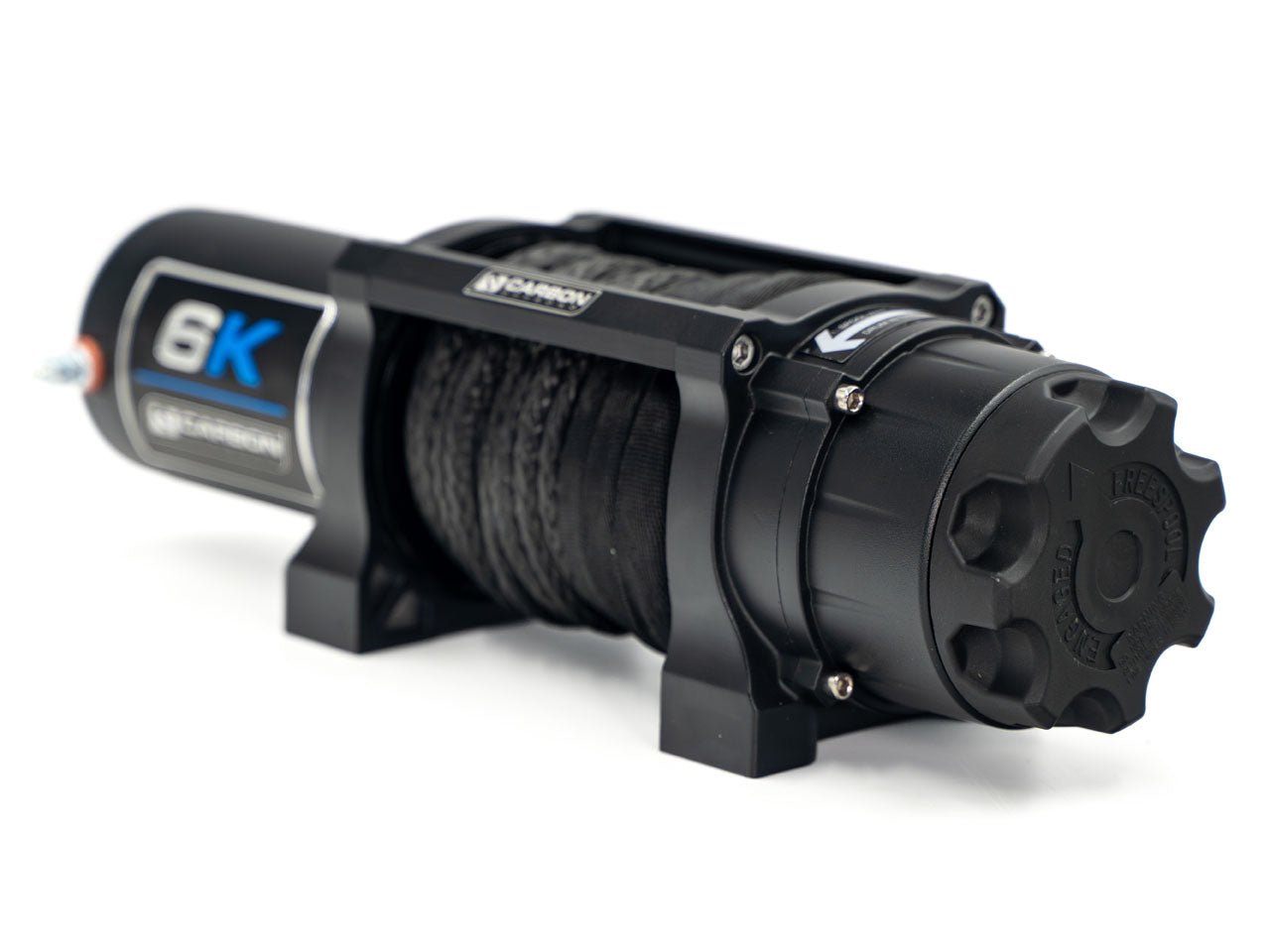

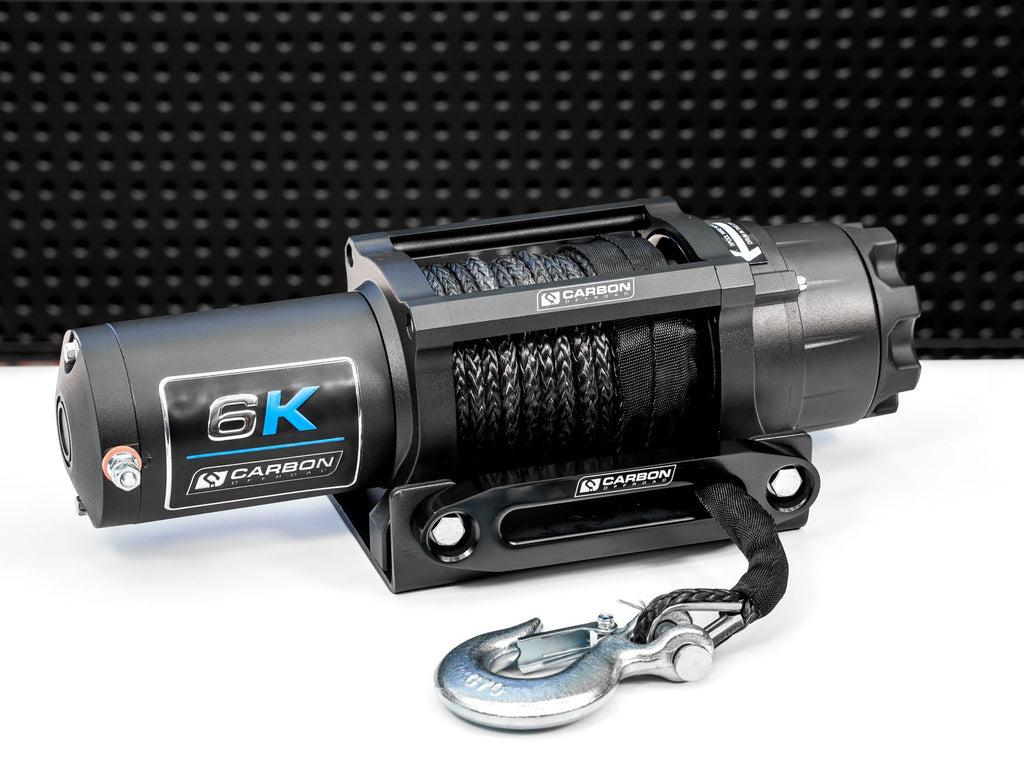

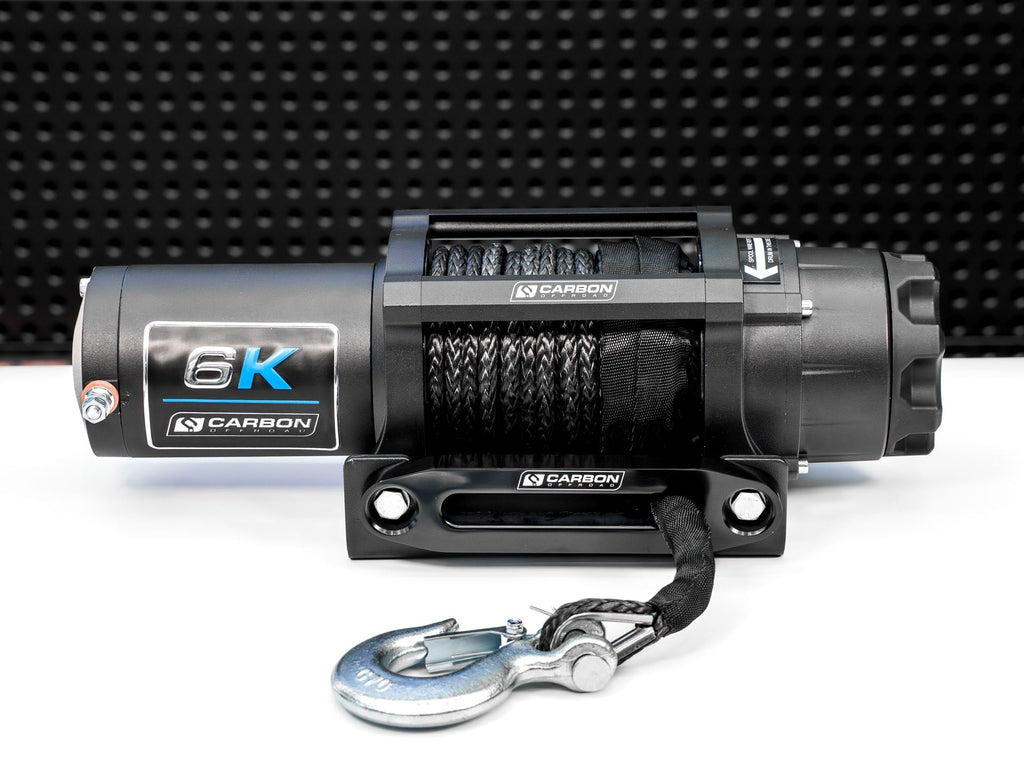

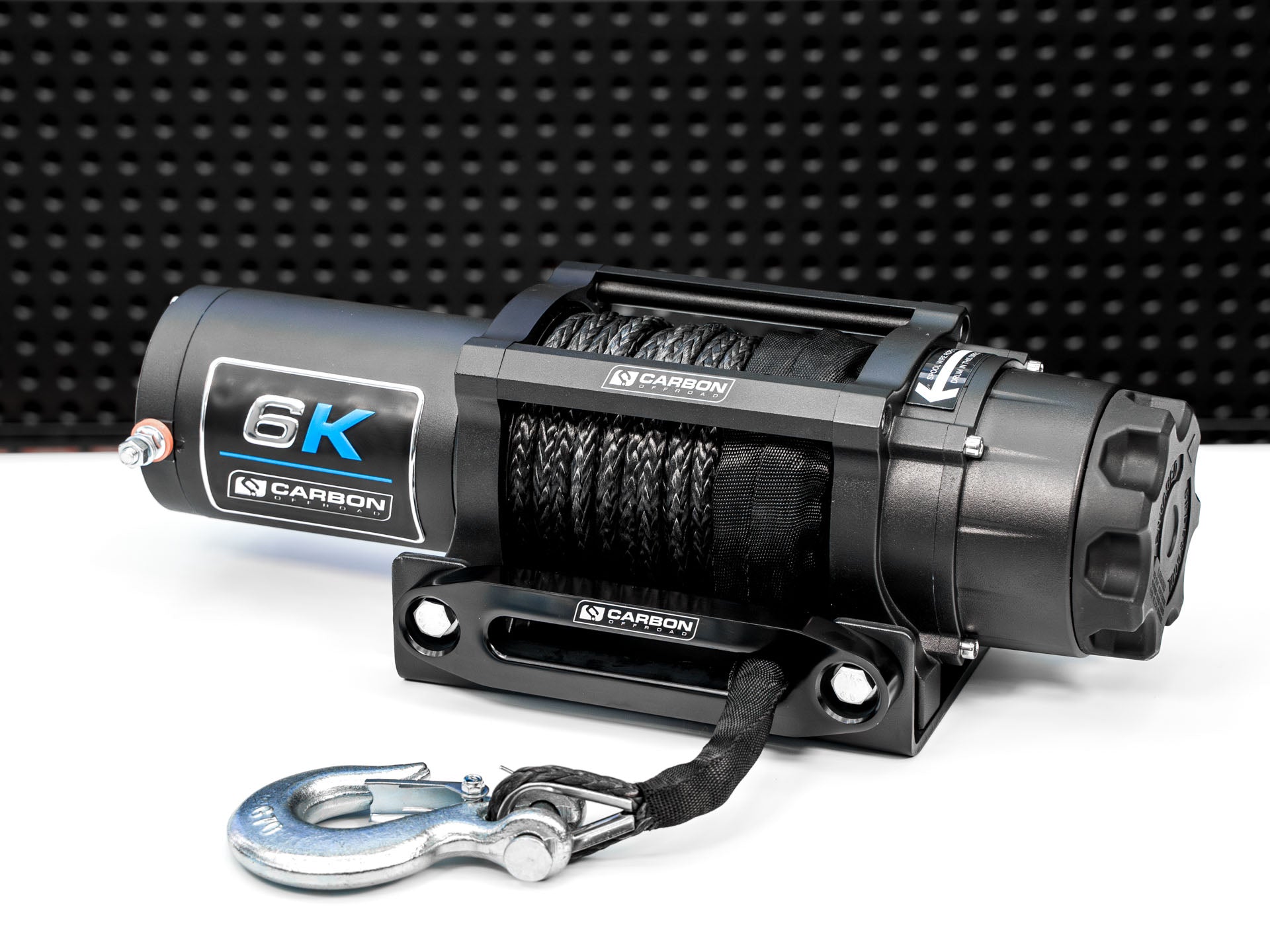

The Carbon Offroad 6000 Lb Atv Winch For Atvs, Small 4wds, Caravans, Trailers, Boats.

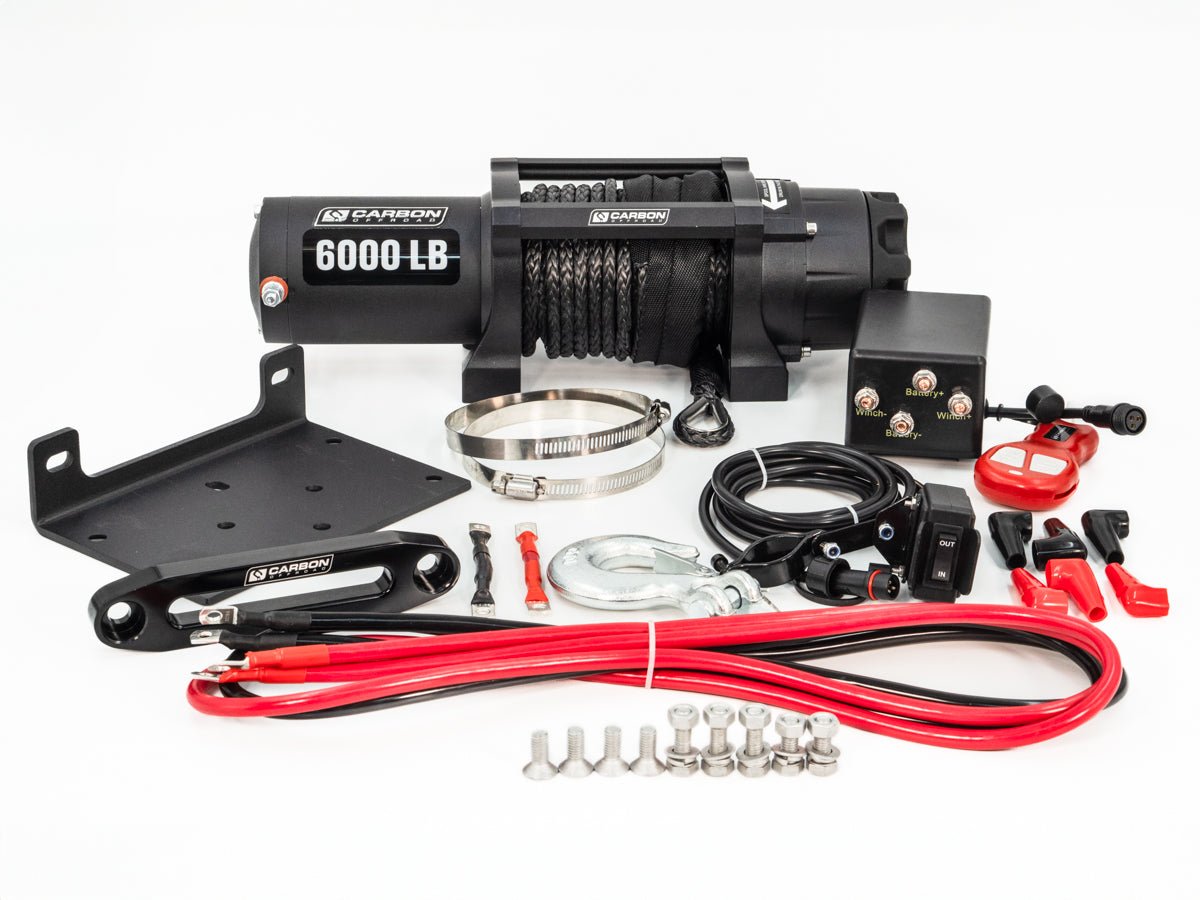

A Small Compact Winch With Integrated Mounting Plate Makes Mounting This Winch Is As Simple As It Can Get To An Existing Pedestal On A Trailer, Or Into A Winch Location On An Small Form Factor Bar. With Wireless And Wired Remote Control Included Free, It's A Very Versatile Winch Setup. Perfect For Small Car And Equipment Trailers, Great To Mount In The Back Of A Van To Help Load Heavy Equipment And Has Even Been Used To Load Tinny's And Open Cattle Gates On Livestock Truck Trailers. A Great Small All Rounder Winch To Make Work Easier Or To Get Your Jimny Or Trailer Out Of The Bog.



Features And Benefits

• Sealed Motor And Geartrain Allows For Flawless Operations In Extreme Conditions
• Permanent Magnet Motor Provides Heavy Duty Torque For Increased Pulling Power
• Cam Action Disengages Gears For Near Silent Free-Spooling
• Mechanical And Dynamic Brake Offers Increased Control And Prevents Rollback



Specification For Cw-Xd6

• Part Number: Cw-Xd6
• Rated Line Pull: 6,000 Lbs, (2721kg) Single-Line
• Motor: 24v Dc 1.5hp Motor
• Geartrain: 3 Stage Planetary
• Gear Ratio: 166:1
• Clutch: Free Spooling, Cam Activated
• Synthetic Rope: 42 Ft (13m) X 1/4 In (6.0mm)
• Fairlead: Aluminium Hawse
• Ip Rating: Ip66 - Winch And Controls (Except Remote Switch)
• Winch Dimensions ( L X W X H ): 13.8 X 4.5 X 4.7in (350.5 X 115 X 120mm)
• Mounting Bolt Pattern: 3.0 X 6.59in (76mm X 167mm)
• Packing Dimensions( L X W X H ): 19.7 X 12.1 X 7.28in (500 X 307 X 185mm)
• Shipping Weight: 12.2kg



Line Pull Lbs.(Kgs.)	Line Speed Ft./Min(M/Min.)	Motor Current @24v
0 (0)	20.5 (6.2)	15 Amps
1000 (454)	16.1 (4.9)	41 Amps
2000 (907)	12.8 (3.9)	68 Amps
3000 (1361)	10.7 (3.3)	84 Amps
4000 (1814)	8.6 (2.6)	116 Amps
6000 (2721)	4.9 (1.5)	160 Amps



**The Manual Indicates That A Circuit Breaker Is Included, Unfortunately This Is Not The Case. We Apologise For Any Confusion.**
