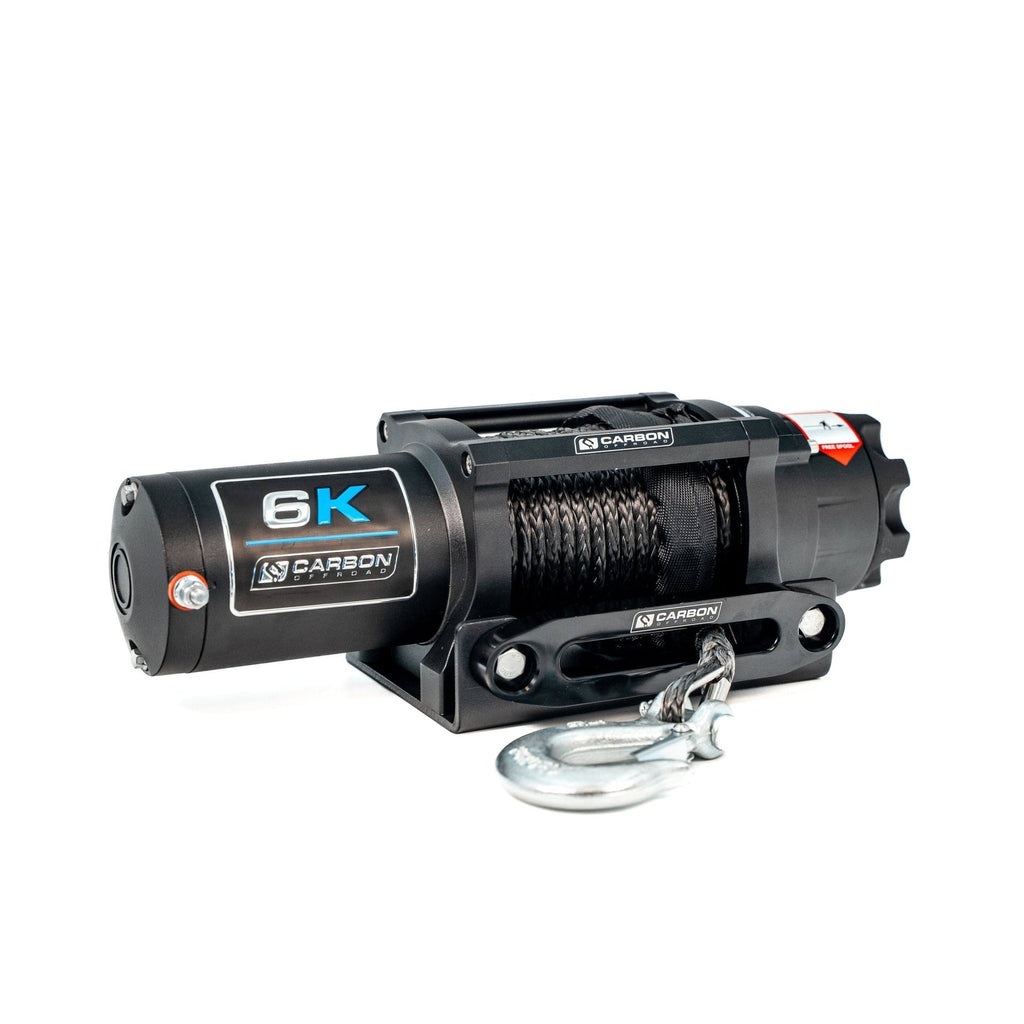

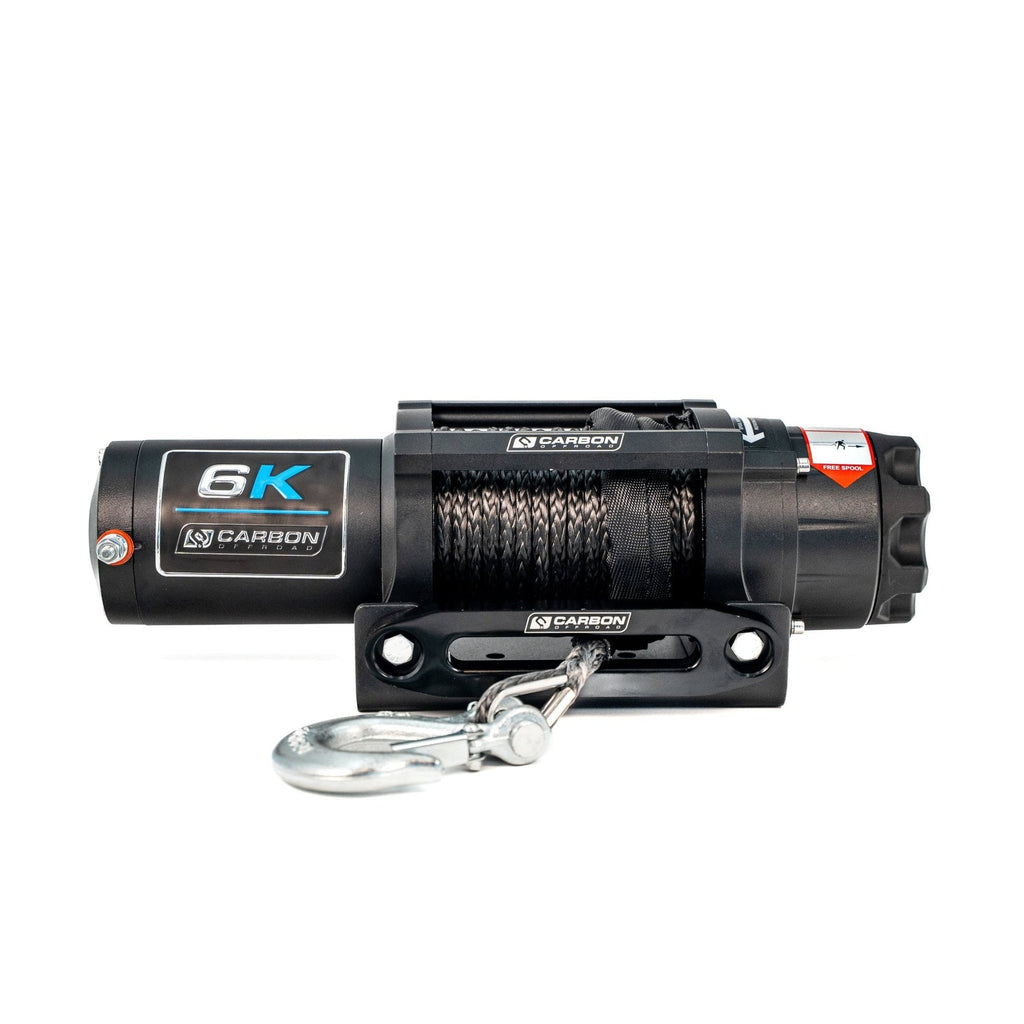

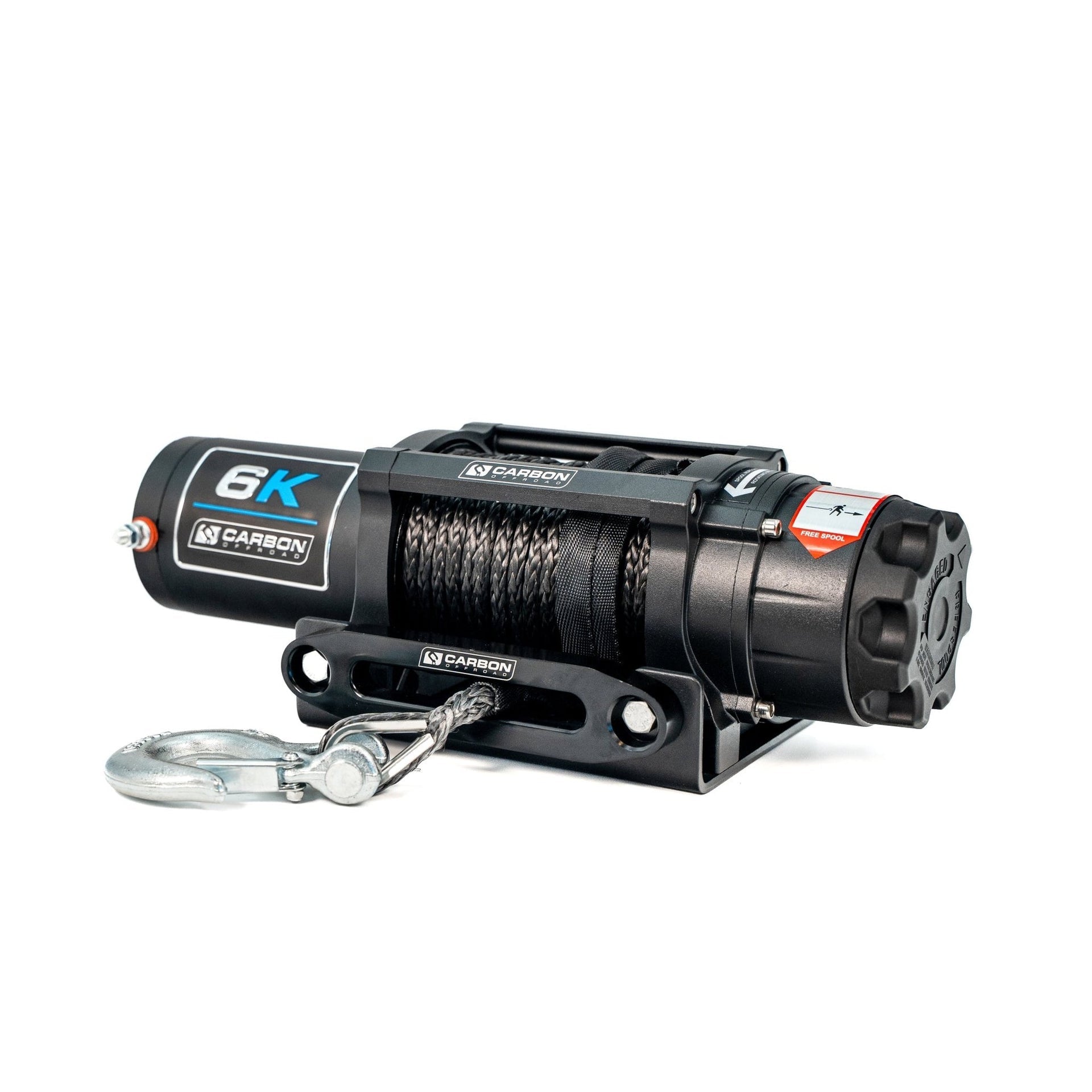

The Carbon Offroad 6000 Lb Atv Winch For Atvs, Small 4wds, Caravans, Trailers, Boats.

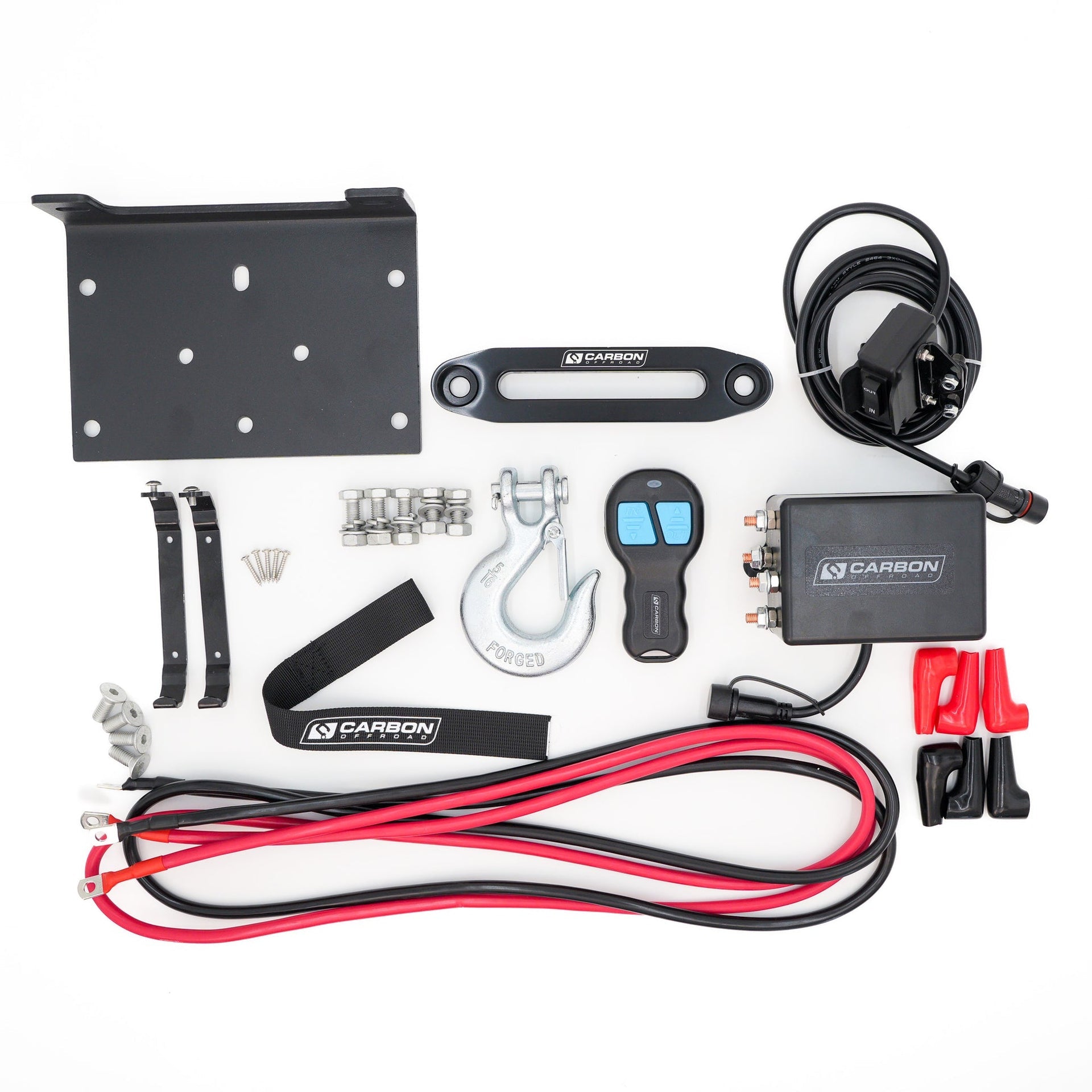

A Small Compact Winch With Integrated Mounting Plate Makes Mounting This Winch Is As Simple As It Can Get To An Existing Pedestal On A Trailer, Or Into A Winch Location On An Small Form Factor Bar. With Wireless And Wired Remote Control Included Free, It's A Very Versatile Winch Setup. Perfect For Small Car And Equipment Trailers, Great To Mount In The Back Of A Van To Help Load Heavy Equipment And Has Even Been Used To Load Tinny's And Open Cattle Gates On Livestock Truck Trailers. A Great Small All Rounder Winch To Make Work Easier Or To Get Your Jimny Or Trailer Out Of The Bog.

Features And Benefits

• Sealed Motor And Geartrain Allows For Flawless Operations In Extreme Conditions
• Permanent Magnet Motor Provides Heavy Duty Torque For Increased Pulling Power
• Cam Action Disengages Gears For Near Silent Free-Spooling
• Mechanical And Dynamic Brake Offers Increased Control And Prevents Rollback

Specification For Cw-Xd6

• Part Number: Cw-Xd6
• Rated Line Pull: 6,000 Lbs, (2721kg) Single-Line
• Motor: 24v Dc 1.5hp Motor
• Geartrain: 3 Stage Planetary
• Gear Ratio: 166:1
• Clutch: Free Spooling, Cam Activated
• Synthetic Rope: 42 Ft (13m) X 1/4 In (6.0mm)
• Fairlead: Aluminium Hawse
• Ip Rating: Ip66 - Winch And Controls (Except Remote Switch)
• Winch Dimensions ( L X W X H ): 13.8 X 4.5 X 4.7in (350.5 X 115 X 120mm)
• Mounting Bolt Pattern: 3.0 X 6.59in (76mm X 167mm)
• Packing Dimensions( L X W X H ): 19.7 X 12.1 X 7.28in (500 X 307 X 185mm)
• Shipping Weight: 12.2kg

**The Manual Indicates That A Circuit Breaker Is Included, Unfortunately This Is Not The Case. We Apologise For Any Confusion.**
