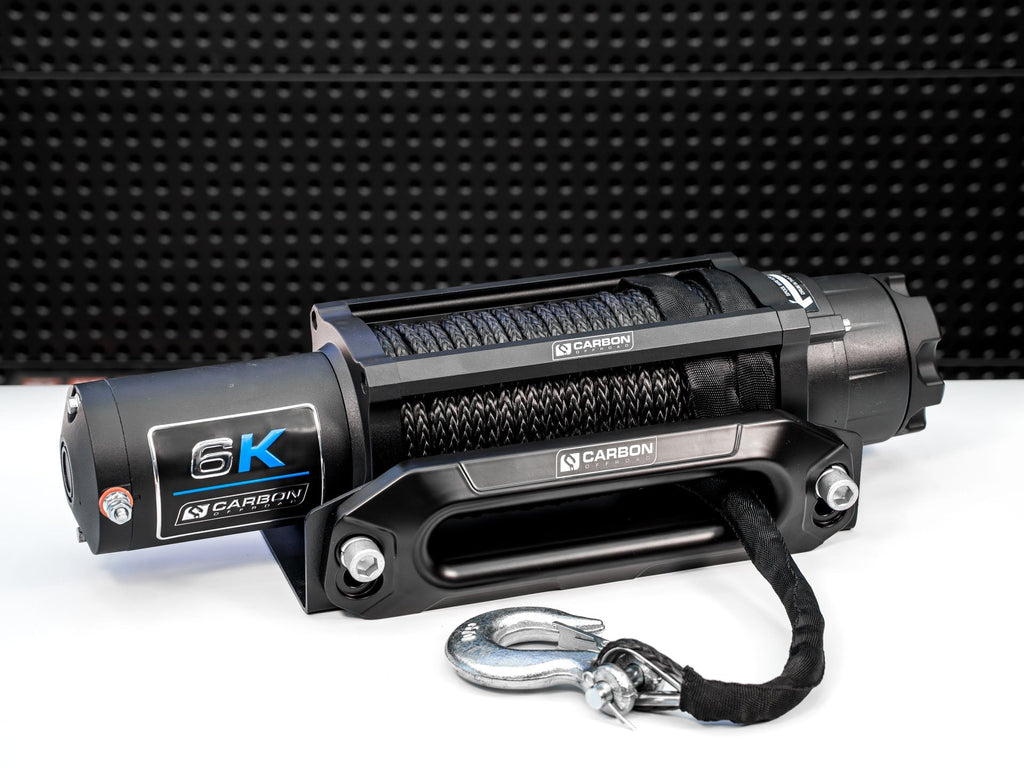

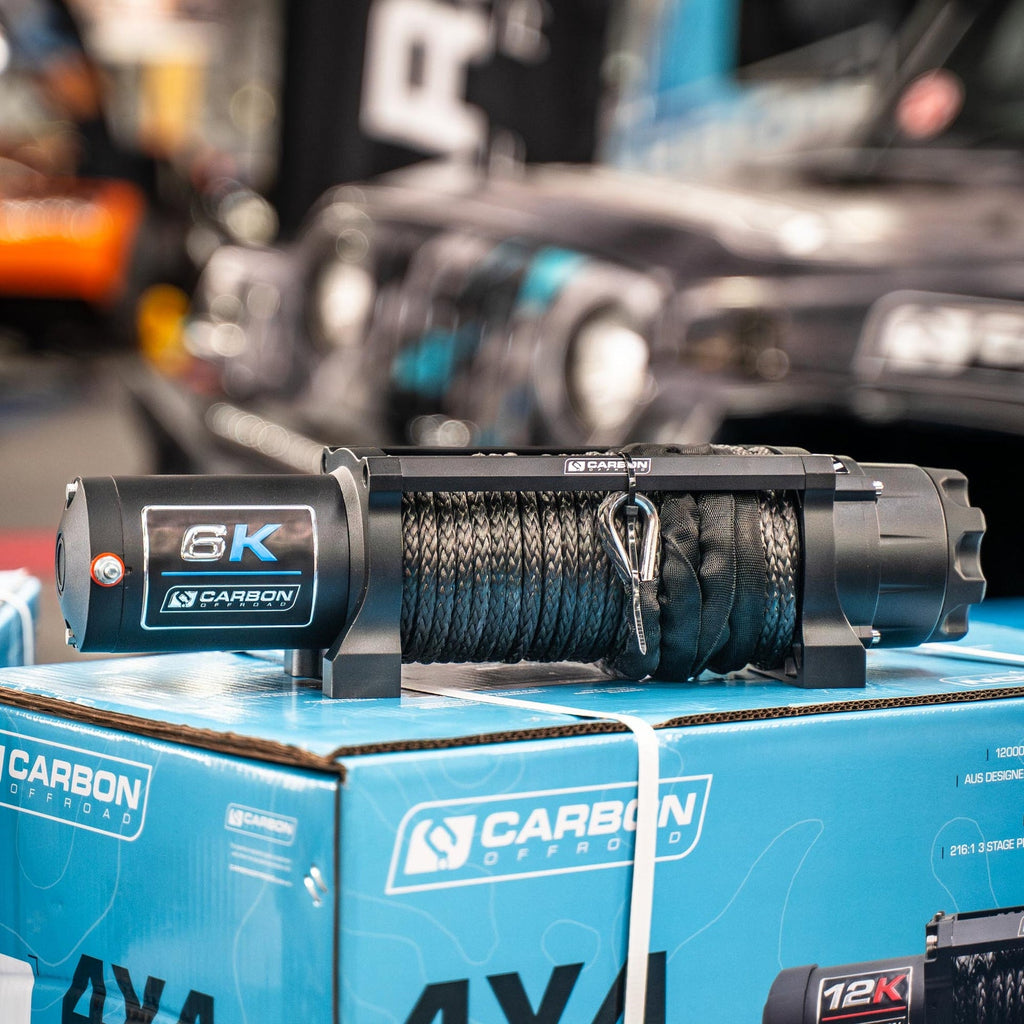

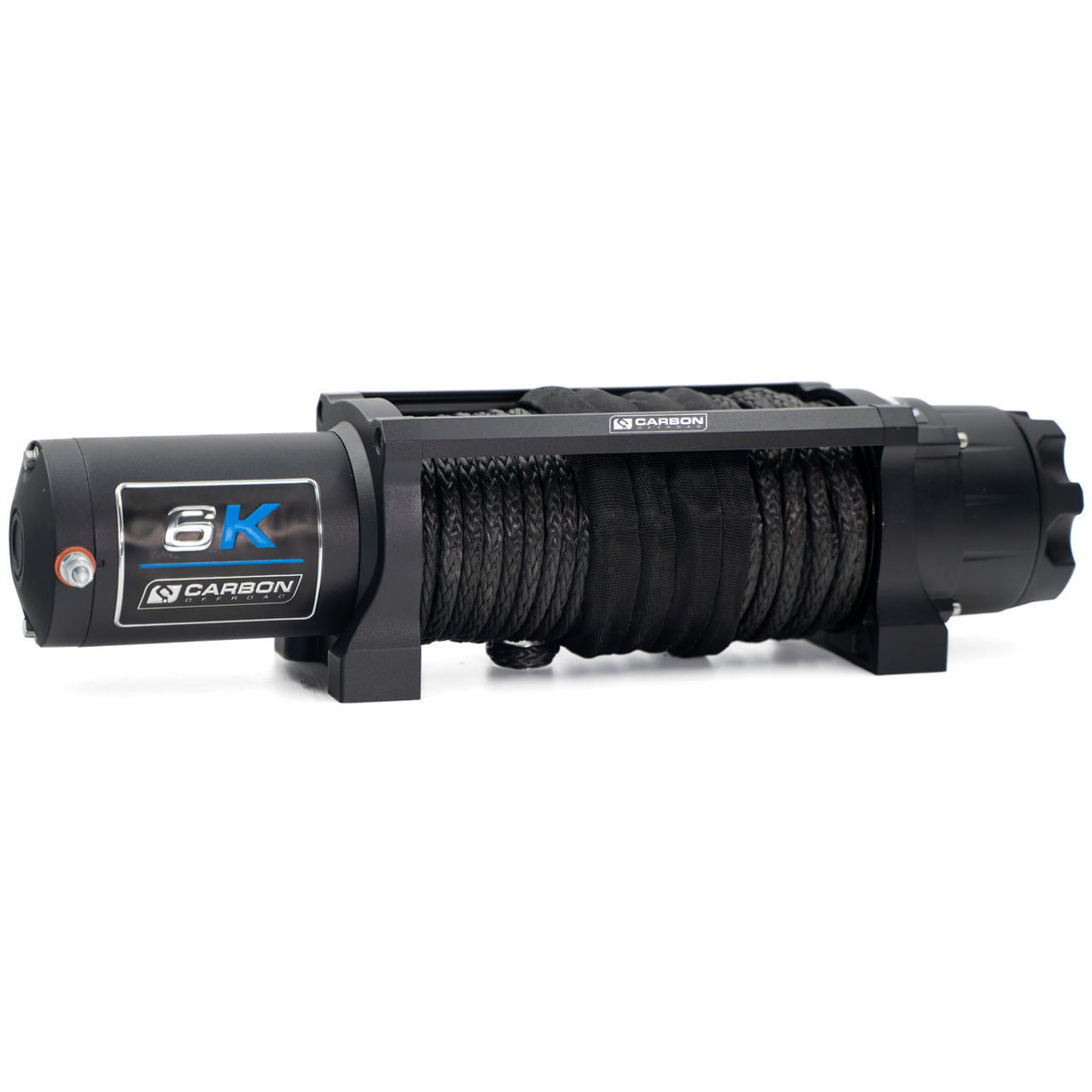

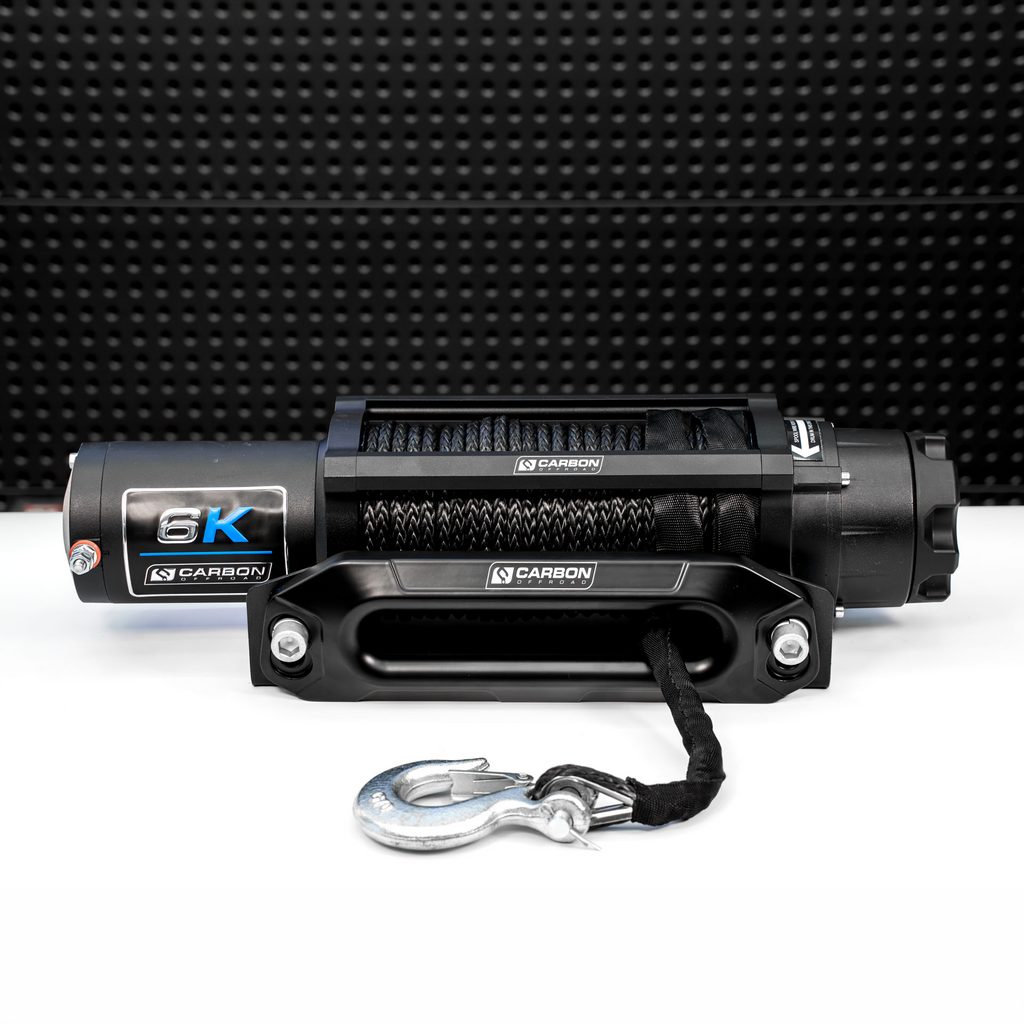

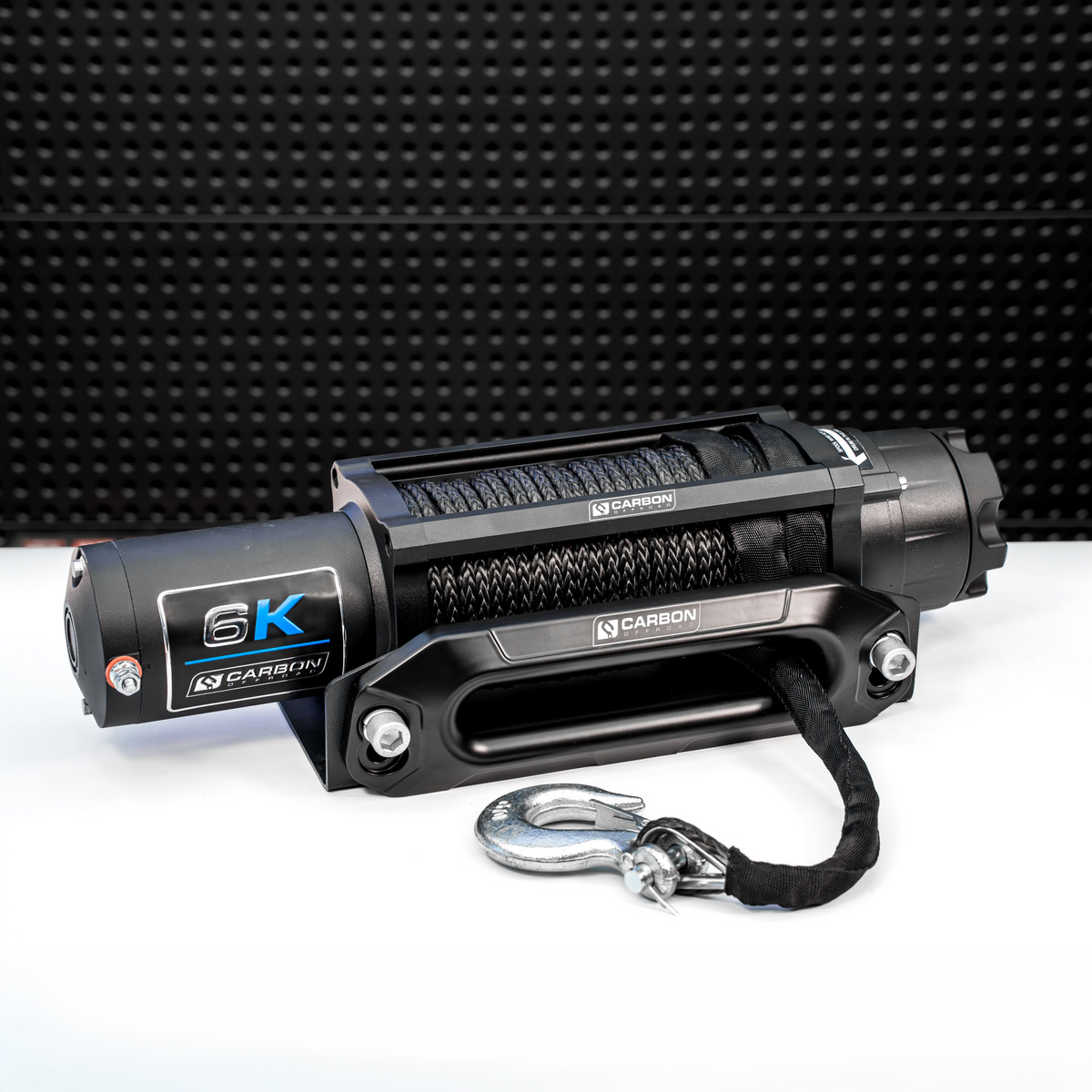

Carbon Offroad Long Drum 6K Winch - 6,000 lb winch with 26 m synthetic rope, sealed motor, dual remotes, and fail-safe braking. Perfect for ATVs, compact 4WDs, trailers, and boats needing extra line reach.
The Carbon Offroad Long Drum 6000lb ATV / Small 4x4 Winch is a nimble workhorse created to reach where short-drum winches can’t.
Overview
With 6,000 lbs of pulling capacity and a generous 26m (85.3 ft) synthetic rope on its extended drum, the Carbon CW-XD6L is engineered for versatile duty on ATVs, compact 4WDs, caravans, trailers and boats. Do you need to haul a tinny up a steep, low-tide ramp? Slide heavy machinery into a van from well outside the rear doors? Winch a small 4WD or camper-trailer through deep sand without adding an extension rope?
If your jobs demand extra line reach in tight spaces, this is the winch you’ve been waiting for. With a sealed permanent-magnet motor, near-silent free-spooling clutch, dual wired and wireless remotes, and fail-safe braking, the Long Drum 6K delivers reliable power, precise control and the rope length to keep work sites and weekend getaways running smoothly.
Features
-
Extreme Durability: Sealed motor and geartrain (IP68 rated) allows for flawless operation in extreme, wet, and dusty conditions.
-
Heavy-Duty Pulling Power: A 12V DC 2.5 HP permanent magnet motor provides heavy-duty torque for increased pulling power.
-
Smooth Free-Spooling: Features a cam action clutch that disengages gears for near-silent, effortless free-spooling.
-
Secure Control: Mechanical and dynamic automatic braking offers increased control and reliably prevents rollback.
-

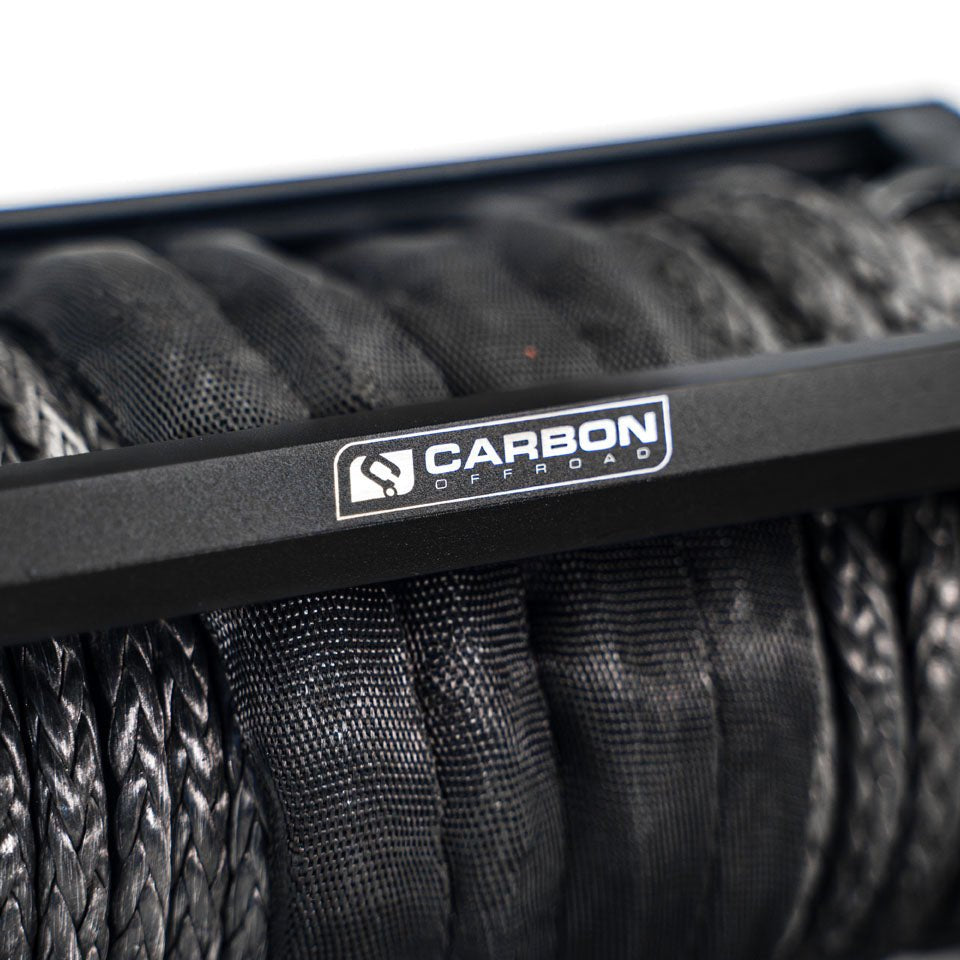

Extended Rope Reach: The long drum design accommodates an impressive 26m (85.3 ft) of synthetic rope, giving you more options in tricky recovery scenarios.
Contents
1 x Carbon Offroad Long Drum 6000lb Winch (CW-XD6L)
1 x Synthetic Rope (26m x 6.5mm diameter)
1 x Aluminium Hawse Fairlead
1 x Handlebar Mini-Rocker Switch
1 x Wireless Remote Control
1 x Control Box complete with cables & mounting bolts
Note: Please note this kit does not include the winch cradle shown in the pictures.
| Feature |
Specification Metric (Imperial) |
| Part Number |
CW-XD6L |
| Rated Line Pull |
6000 lbs (2725 kg) single-line |
| Motor |
12V DC 2.5 HP permanent magnet |
| Geartrain |
3-Stage Planetary |
| Gear Ratio |
147:1 |
| Clutch |
Roller disc full load automatic |
| Brake |
Automatic brake in the motor bracket |
| IP Rating |
IP68 for winch and solenoid (excludes remotes) |
| Synthetic Rope |
26m x 6.5mm (85.3 ft x 1/4") |
| Drum Dimensions |
51mm x 208mm (2.0" x 8.2") |
| Mounting Bolt Pattern |
254mm x 76mm (10.0" x 3.0") |
| Recommended Battery |
650 CCA minimum for winching |
| Winch Dimensions (L x W x H) |
473 x 125 x 120mm (18.6" x 4.9" x 4.7") |
| Packing Dimensions (L x W x H) |
530 x 170 x 230mm (20.9" x 6.7" x 9.1") |
| Winch Weight (Bare) |
8.3kg (18.3 lbs) with synthetic rope attached |
| Total Kit Weight |
11.2kg (24.7 lbs) including control box, cables, bolts & fairlead |
| Warranty |
Lifetime Mechanical / 5 Year Electrical |
12V DC Performance Specs
| Line Pull lbs (kgs) |
Line Speed ft/min (m/min) |
Motor Current (Amps) |
Rated Line Pull Position lbs (kgs) |
| 0 |
13.8 (4.2) |
15 |
1 / 6000 (2725) |
| 2000 (907) |
9.5 (2.9) |
125 |
2 / 5350 (2430) |
| 4000 (1814) |
7.2 (2.2) |
190 |
3 / 4780 (2170) |
| 6000 (2722) |
4.6 (1.4) |
240 |
4 / 4270 (1940) |
