The Carbon Offroad Scout Pro 20000lb Extreme Duty Truck Winch - BYO Hook delivers a high-performance recovery solution with 9072kg (20000lbs) of pulling capacity via a 7 HP motor.
Extreme Duty Truck Recovery
The Carbon Offroad Scout Pro 20000lb Extreme Duty Truck Winch - BYO Hook delivers a high-performance recovery solution with 9072kg (20000lbs) of pulling capacity via a 7 HP motor.
Engineered for the Outback
Please Note: This listing is for the winch only. No hook or soft shackle is included in this package. The winch comes with the winch accessory kit only, perfect if you already have a hook.
The Carbon 20k Winch delivers a high-performance recovery solution trusted by 4WD enthusiasts across Australia. Designed to make your installation easier and your recoveries safer, this winch features a robust construction, advanced waterproofing, and dependable electronics that work when you need them most.
With an upgraded IP68 rating, you can confidently take on water crossings, mud runs, and everything in between. A breathable membrane motor breather handles temperature fluctuations, while your recoveries are powered via both wireless and wired remotes (both included), keeping you safe in the driver's seat.
You can upgrade this winch with the Carbon Offroad Air Freespool Clutch Upgrade, specifically designed for use with Carbon Offroad 12K and Scout Pro winches.
IP68 Explained: 6: Complete protection against dust and dirt 8: Water submersible up to 1.5m (4.9ft) for 30 minutes (not during operation)
Whether you're tackling Tassie's toughest tracks or cruising up to Cape York, the Carbon Winch is a proven performer. It is backed by a 5-year electrical and water ingress warranty, plus a lifetime mechanical warranty, with a full range of spare parts stocked right here in Australia.
Installation is made easy with clear instructions, and an included isolator switch with extra cabling ensures your winch is powered off when not in use. Mount the control box your way, on the winch, above the drum, or remotely on your vehicle using the multi-fit bracket system.
At just 31.7kg (69.9lbs), this is one of the lightest 20K winches in its class, ideal for keeping your GVM in check without compromising on performance.
Technical Features
-
Waterproofing: IP68 rating.
-
Motor Breather: Breathable membrane motor breather.
-
Control: Wireless and wired remotes included.
-
Mounting: Multi-fit bracket system.
-
Safety: Included isolator switch with extra cabling.
-
Warranty: 5-year electrical and water ingress warranty, lifetime mechanical warranty.

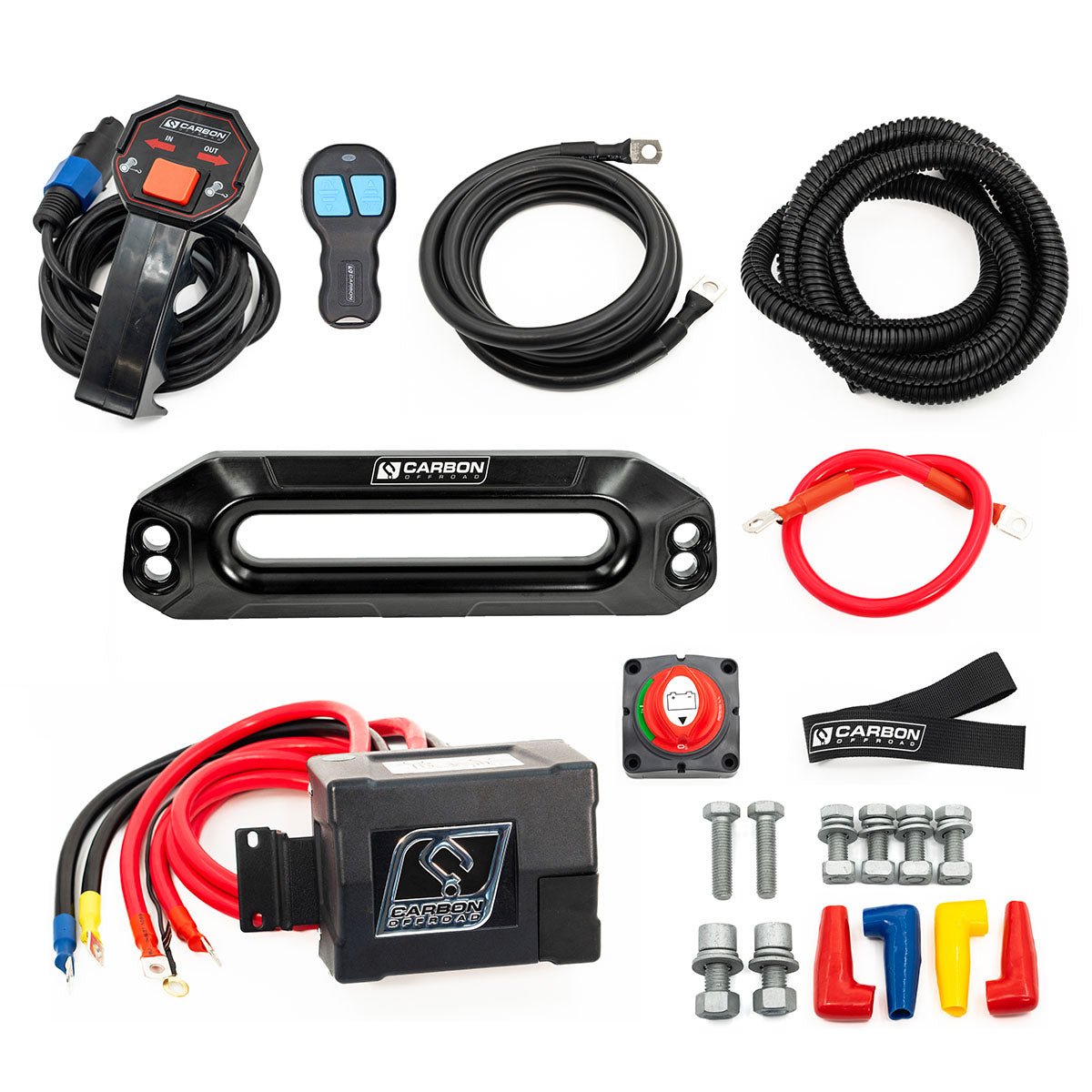

Contents
1 x Carbon Scout Pro 20000lb Extreme Duty Truck Winch - BYO Hook
1 x Winch Accessory Kit
1 x Wired Remote Control
1 x Wireless Remote Control
1 x Isolator Switch with Extra Cabling
| Feature |
Specification Metric (Imperial) |
| Rated Line Pull |
9072kg (20000lbs) |
| Motor |
7 HP |
| Gear Ratio |
354:1 |
| Drum Dimensions |
88mm x 224mm (3.5" x 8.8") |
| Mounting Bolt Pattern |
254mm x 114.3mm (10.0" x 4.5") |
| Winch Dimensions |
579mm x 192mm x 224mm (22.8" x 7.6" x 8.8") |
| Packing Dimensions |
640mm x 250mm x 345mm (25.2" x 9.8" x 13.6") |
| Installed Weight |
37kg (81.6lbs) |
