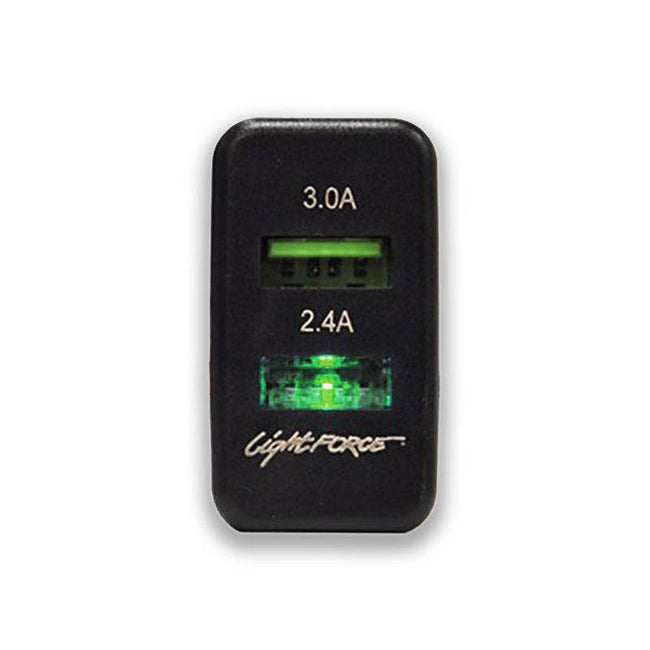

Dual USB to suit Toyota

This 3.0A / 2.4A USB charger is designed to be compatible with Toyota vehicles with a 21mm (W) x 39mm (H) switch panel.
Suitable for charging high powered devices like tablets, mobile phones and gaming consoles or powering navigation units and in car DVR’s.

Features:

Dual 3.0A / 2.4A (5.4A in total) outputs that are fully regulated and surge protected.

Independent illumination that is fully dimmable via existing dash light circuit, separate from the main input power, so illumination is not always on; a unique feature of our product.
All cables are over 1.5 metres long, main power (red wire) in is fitted with a fuse tap for direct fitment to the fuse box. Earth cable (black wire) is pre-terminated with a ring terminal and independent LED illumination (blue wire) for connection to existing dash light circuit.

Specifications:

•  3.0A / 2.4A (5.4A) outlets
• 5.1 Volts regulated output
• 1.5 Metre long cables
• 5 Amp fuse tap for dual USB outlets
• 2 Amp fuse for illumination
• Independent green LED illumination
• Matt black face

Other Toyota models may be compatible, confirm size is 21mm (W) x 39mm (H) before purchasing.

Installation:

Red wire – USB positive wire can be connected in the following ways.
To an ignition source so the unit is only powered once the vehicle is on; or to an always on source so the unit is active continuously.
Blue wire – Positive wire connects to the existing dash light circuit so LED illumination is only active once headlights are on.
Black wire – Fit to vehicles earth simply connect ring terminal to an existing M6 bolt that is grounded.

NOTE: All vehicle accessories should be wired through a fuse if the included harness is modified during installation ensure a fuse is used as close to the input source as possible not exceeding 5 amps.
