These connectors are suitable for use with a wide range of vehicles. When used with a range of dedicated Lightforce Driving Light Harnesses, they provide an easy plug and play installation for your driving lights. Please refer to your vehicles Owner Manual for product suitability.

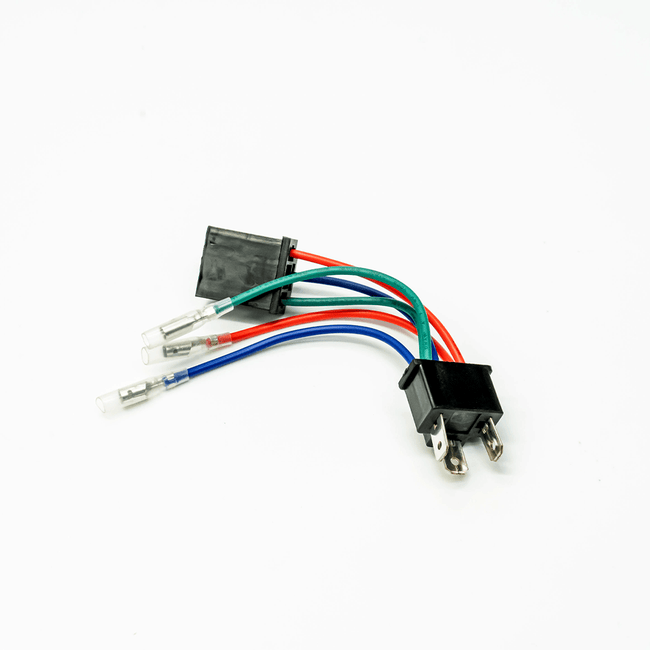

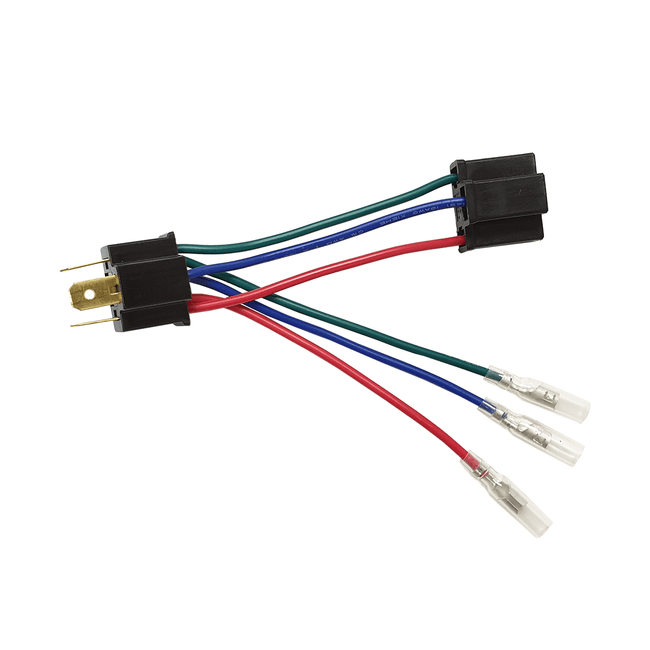

The headlight patch harness fits into the existing factory headlight connector. This connector is located on the back of each side of the vehicle’s headlight assemblies.
Connect the H4 Patch Harness Connector to the corresponding connectors on the Lightforce Driving Light Harnesses.
The CBH4 Patch Harness Connector provides a low beam pick up function or switch illumination, when used with the Lightforce Driving Harness LFDLHTS (Genesis and Venom LED).
These wires connect directly into a select range of Lightforce wiring harnesses.
These harness types include:
# LFDLHTS/LFDLHTS2 - Genesis / Venom
# LFDLHDS - HTX MK1/MK2
# LFDLHSS - 12V Single Switching harness
# LFLBHVSR/LFLBHVDR- Viper Light Bar
# LFDLHBEAST-U BEAST LED Driving Lights Wiring Kit – Universal Fitment
Note: To find out your vehicle headlight patch harness type, please review your vehicles driver manual.
