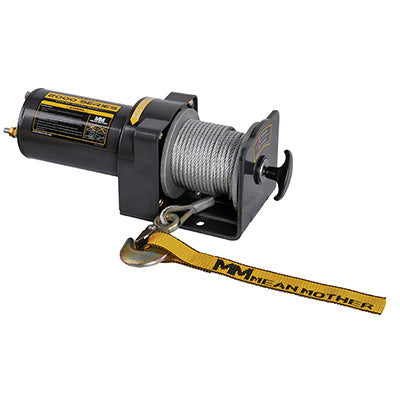

Mean Mother ATV EW2000S winches have been designed to be compact and light weight and are ideal for most ATV/UTV vehicles. Each model has more than enough power to recover ATV/UTV vehicles from most situations. When selecting a winch you should always select one that is 1.5 times the Gross Vehicle Mass (GVM).
Forward and reverse operation with Free spool function
Steel bushings
Steel gears

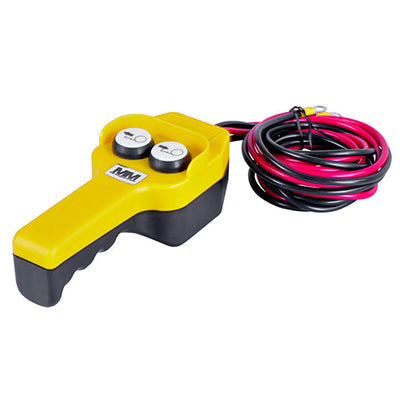

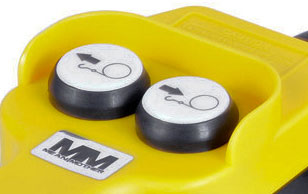

Hand Control
4mm x 15.2 m. (5/32″ x 50′) Construction galvanised aircraft cable.
Thimble in cable eyelet provides reinforcement and maximum strength.
What’s in the box
Winch
Hand control with power leads
4mm 15.2m, (7×19 construction galvanised aircraft cable)
1/4″ Clevis Hook
Hand Saver Hook Strap
Detailed Instruction Manual
Warranty registration Card
Winch Mounting Hardware (Bolts, washers and Nuts)
12 Month Warranty
General Information
Specifications – 2000lb (907kg)
Voltage – 12 Volt
Gear Ratio – 153:1
Gear Tran – 1 Stage Planetary
Clutch – Spline joint clutch
Motor Type – Permanent magnet
Motor – 1.5 Hp, 1 Kw
Control – Hand control, 1.12m lead
Braking – Self locking brake
Drum Size – 32mm x 71mm(1.26″ x 2.8″)
Cable Galvanised Aircraft Cable) – 4mm x 15.2m (5/32″ x 50′)
Clevis Hook – 1/4″
Overall Dimensions – 320mm x 105mm x 110.5mm (12.6″ x 4.13″ x 4.35″)
Net Weight – 6.6kg
Mounting Bolt Pattern – 48mm x 76mm (1.89″ x 3″)
Battery Power Cables – 2 x 1120mm x 6mm²
Motor Power Cables – 2 x 1120mm x 6mm²
Finish – Powder Coating
Performance of 1st Layer
Line Pull – Line Speed – Motor Amp – Draw Current
0 lbs 0 kgs – 13 Fpm 4.0 Mpm – 19 – 12 Volt
1000 lbs 454 kgs – 10 Fpm 3.1 Mpm – 70 – 12 Volt
1500 lbs 680 kgs – 8.2 Fpm 2.5 Mpm – 90 – 12 Volt
2000 lbs 907 kgs – 6.5 Fpm 2.0 Mpm – 110 – 12 Volt
Line Pull & Cable Capacity by Layer
Cable Layer – Rated Line Pull – Cable Capacity
1 – 2000 lbs 907 kgs – 6 Feet 1.8 Metres
2 – 1636 lbs 742 kgs – 13Feet 4.0 Metres
3 – 1385 lbs 628 kgs – 22 Feet 6.7 Metres
4 – 1200 lbs 544 kgs – 33 Feet 10.0 Metres
5 – 1059 lbs 480 kgs – 44 Feet 13.4 Metres
6 – 947 lbs 430 kgs – 50 Feet 15.2 Metres
