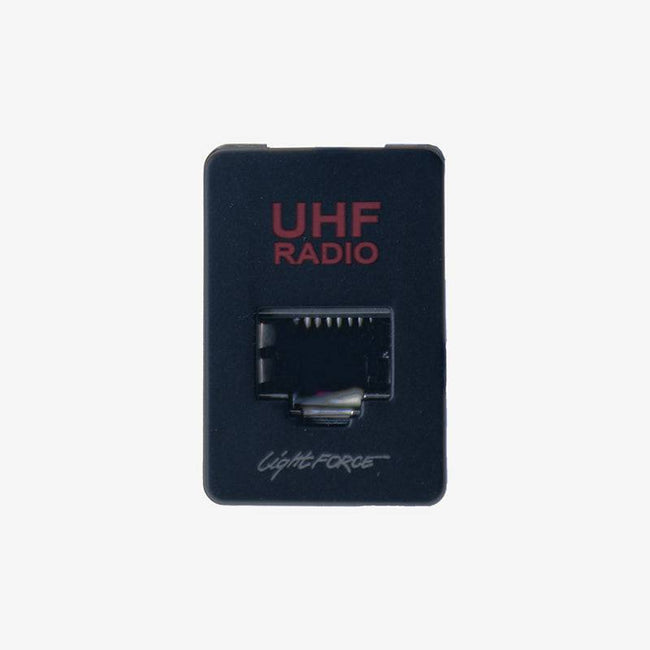

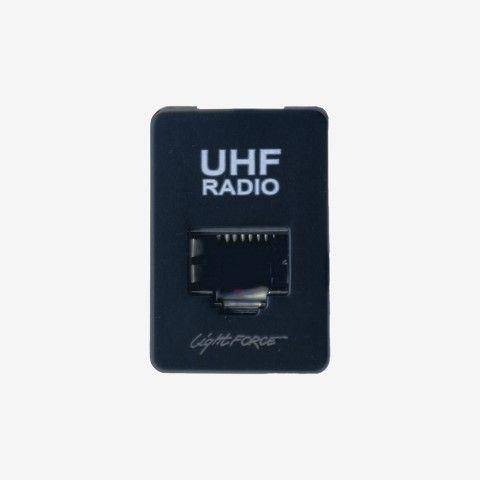

RJ45 M2 Passthrough To Suit Mitsubishi

This RJ45 pass through connector allows for a remote microphone or LAN connection fitted with an RJ45 connector to be integrated directly into a range of OEM switch blank locations.

This new Mitsubishi Triton RJ45 Passthrough Connector allows a UHF microphone fitted with a RJ45 Connector, to be integrated directly into the vehicles switch blank locations.

The UHF head unit can then be remotely mounted with the convenience of just connecting the mic into the RJ45 Passthrough Connector.

This Lightforce RJ45 Passthrough connector is moulded from a blend of ABS plastic and polycarbonate to ensure longevity. Its compact designed will integrate with the vehicles existing factory switches.

• LED backlit illumination (white and red)
• Metal shielding around the RJ45 receptacle to minimise RF interference of the connected cables
• CAT.6 compliant
• Dual internal lateral supports to ensure the UHF plug is fully retained in place.

Wiring Instructions:

Two wire installation: Connect the red wire to the existing dash light circuit and the back wire to the negative.

The RJ45 pass through connector is fully replaceable (not glued in).

NOTE: All dimensions shown are of the external housing.

Vehicle Compatibility
