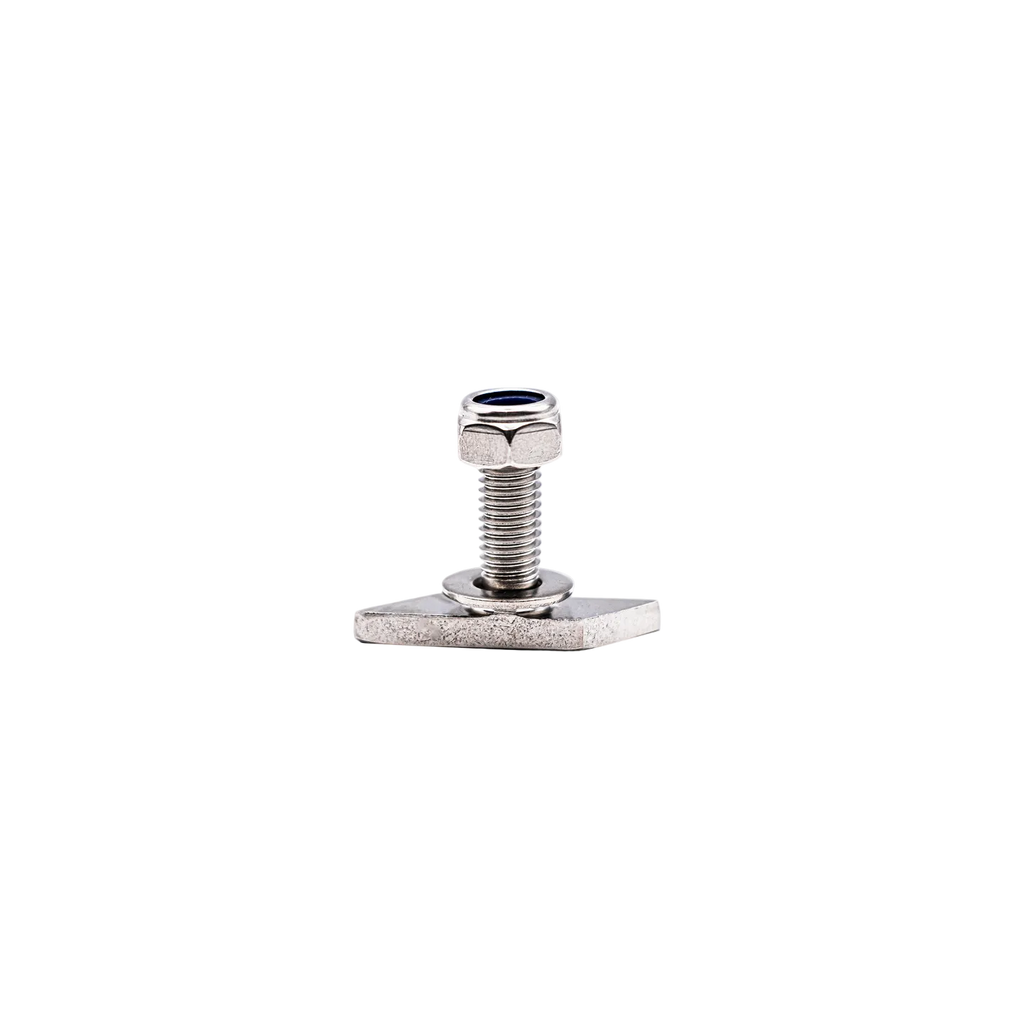

These M8 x 22mm M8 Parallelogram T bolts are specifically designed for use with the 11mm opening on a 20mm wide channel for the Rhino-Rack® Pioneer® Platforms and are made from a single piece of 304 stainless steel. The narrow dimension of the T bolt head is 10.5mm in width with a 4.3mm thick head and can be dropped into the channel and turned.

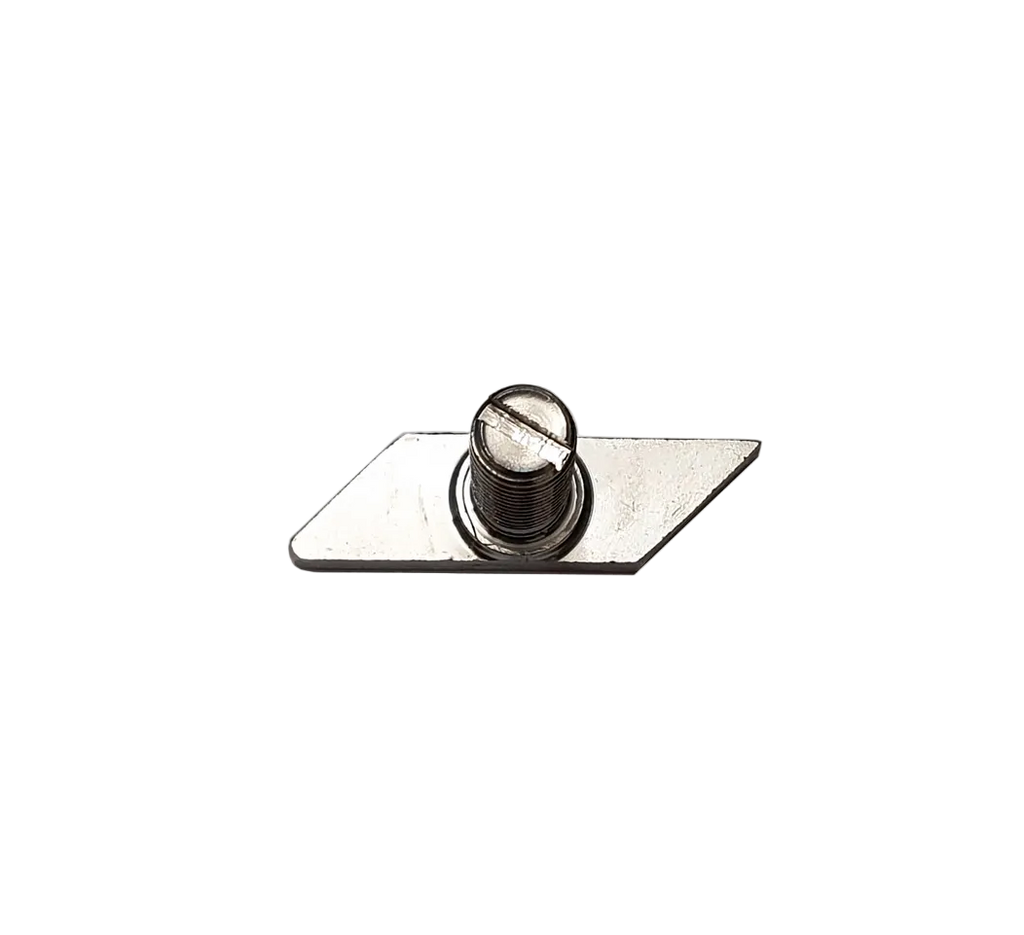

Parallelogram T Bolts are equipped with a slot on the end of the thread to indicate final orientation. This means it is possible to know the position of the bolt head ensuring a maximum bearing area is achieved once tightened.

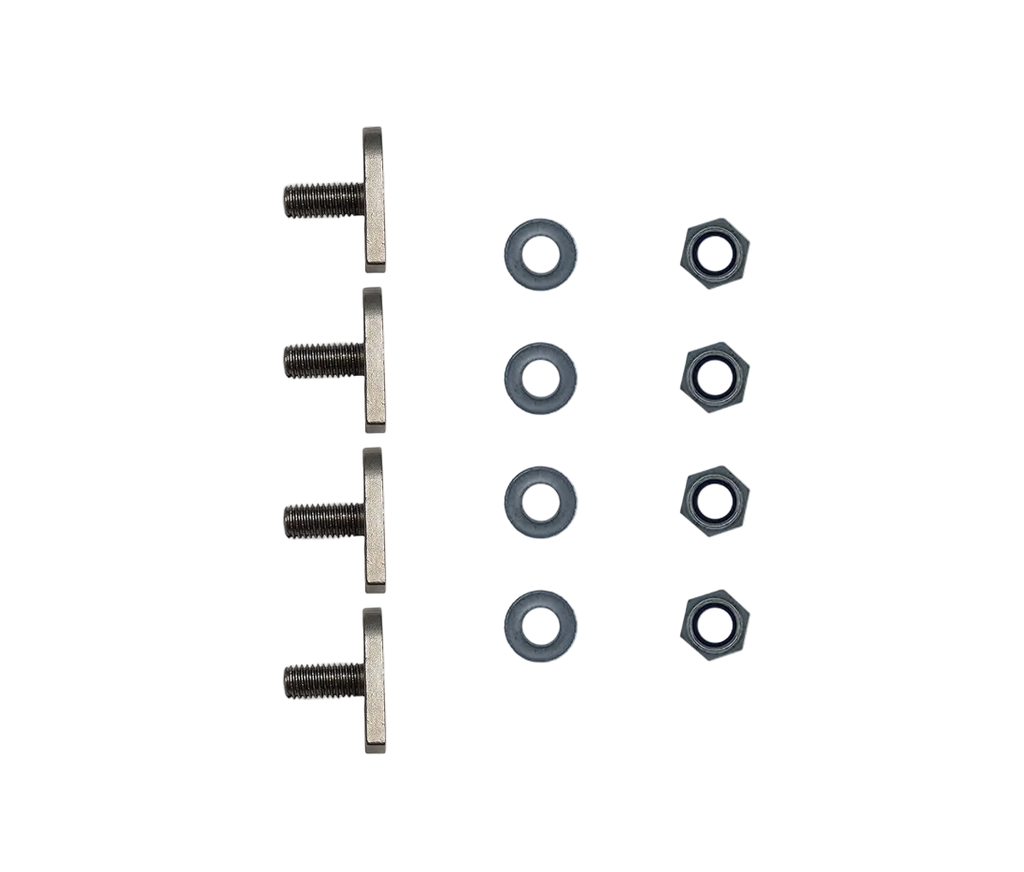

The Parallelogram T bolts can be also be used to fasten an accessory into the channel without the need to move other accessories. Each Parallelogram T Bolt is supplied with an M8 flat washer and an M8 nylon insert lock nut. All components are 304 Stainless Steel.
