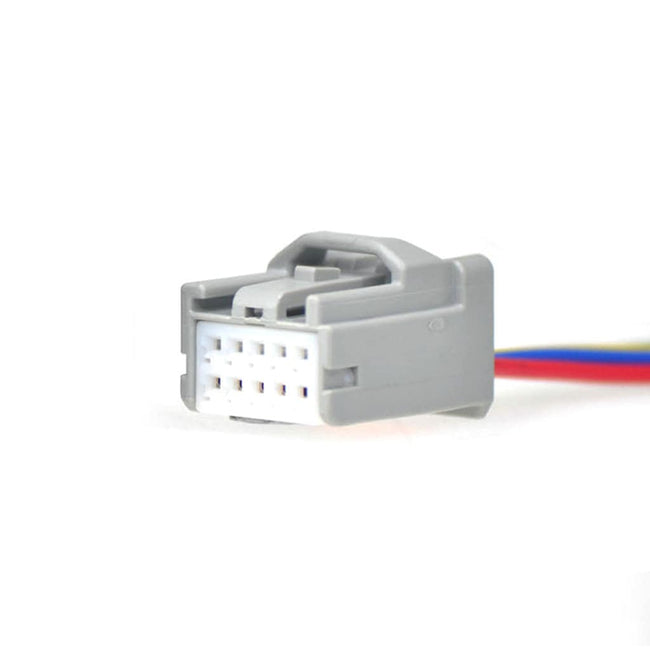

Switch connector sold as a replacement part for Ford/Mazda suitable switches sold by Lightforce.
Switch connector only (100mm in length) suitable for use with the Ford Ranger PX1 and second-generation Mazda BT50 October 2011 onwards OEM driving light switch.
Wiring instructions:
• Red wire - Illuminates the blue indicator on the switch (when in the on position) for this to function connect with the yellow wire
• Blue wire - 12v in from high beam circuit
• Yellow wire - 12v switched out, connect with the red wire, then connect to relay {87}
• Black wire - Connect to earth circuit (negative)
• Green wire - From 12v dash light circuit (illuminates Roo logo or image)
Vehicle Compatibility
| Make |
Model |
Compatible From |
Compatible To |
| Ford |
Ranger PX |
2011 |
2015 |
| Mazda |
BT50 |
2011 |
2017 |
