Description
We use the latest LED technology to produce a combined light source Interior Light, resulting in a very broad and uniform light ideal for cars and SUVs.

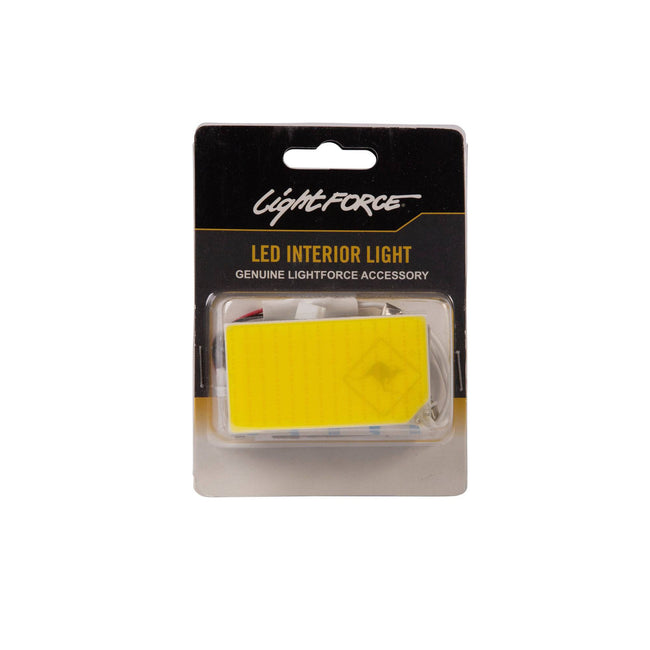

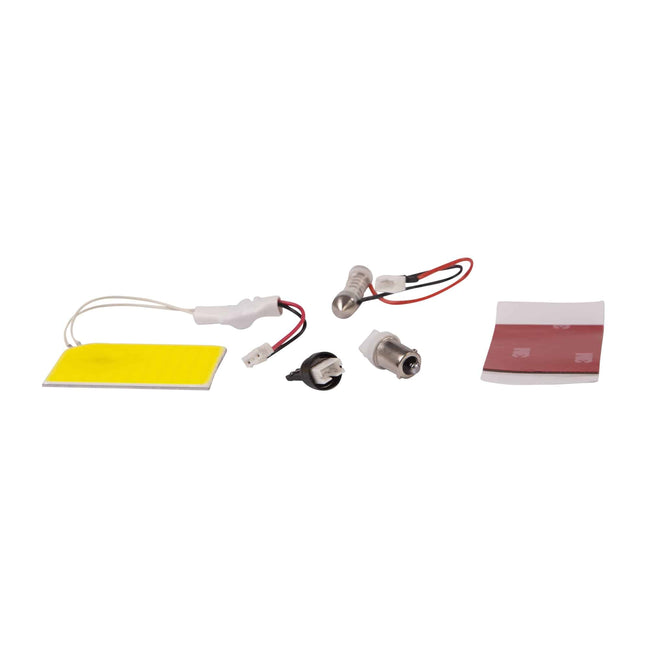

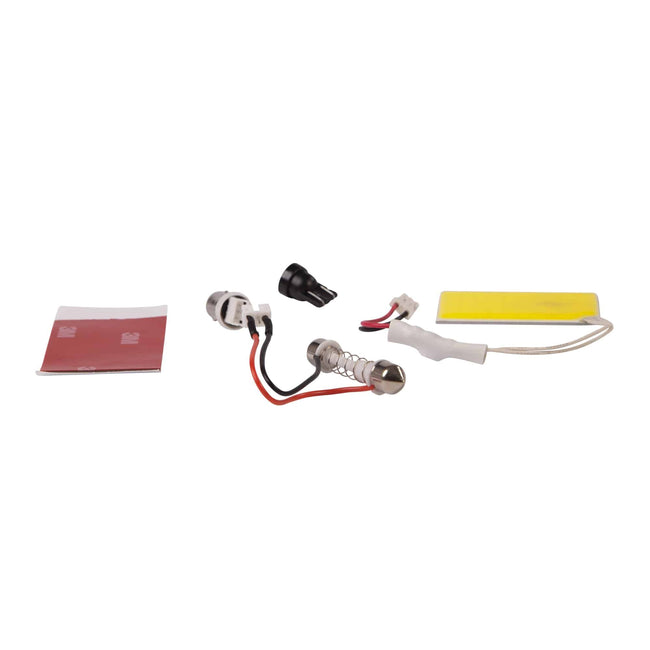

Kit Contents:
1 x COB LED Panel (fully IC regulated not polarity sensitive)
1 x Festoon, T10
BA9S adaptors
1 x Genuine 3M VHB TM industrial double sided adhesive tape
1 x Alcohol cleaning swab
1 x Instructions
COB (Chips On Board) is the latest technology in packaging LEDs together to produce a combined light source, resulting in a very broad and uniform light being emitted over 180°.
With a colour temperature of 4300k (natural white), COB produces increased light output without compromising on light quality while minimising current draw.
FEATURES
- COB panels have many advantages over standard single placed SMD’s
- Even lighting distribution being emitted over 180°
- Up to 3 times more intensity than standard 5050 SMD’s
- More light output per surface area
- Super thin, less than 2.8mm in total thickness
- Not polarity sensitive so all the supplied adaptors can be fitted in any orientation
- Fully regulated IC controlled external driver circuit
- Wide voltage range of 9V-36V DC

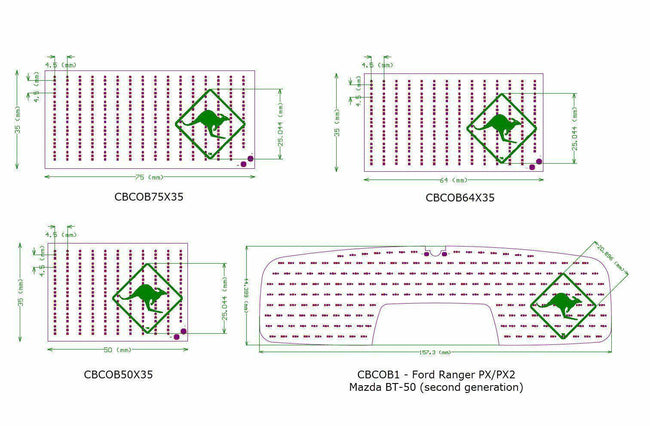

SPECIFICATIONS :
|
SIZE |
Power (Watts) |
Amps @ 12V |
Lumen (Effective) |
Chip Quantity |
Voltage range |
|
50×35mm |
3.5W |
0.29 |
249 |
76 |
9-36V |
|
64×35mm |
3.7W |
0.31 |
282 |
97 |
9-36V |
|
75×35mm |
4.9W |
0.41 |
359 |
111 |
9-36V |

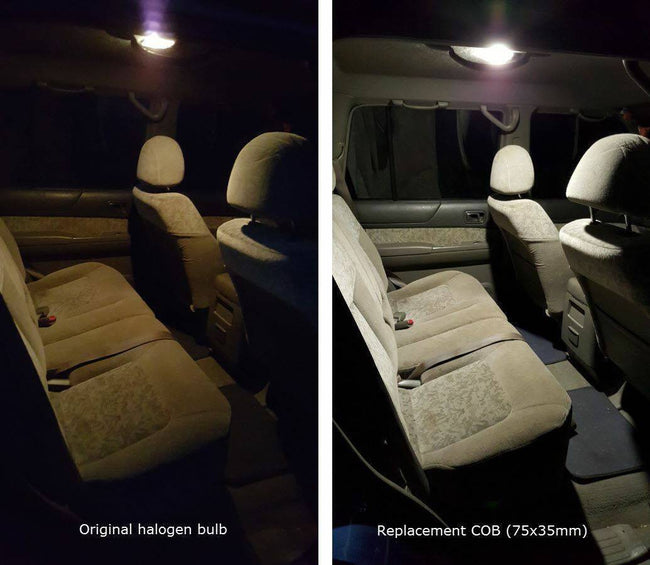

A standard 28mm long halogen festoon generates 3 watts of power, produces 29 lumens of light and consumes 0.25 Amps @12v (reference Osram P# 6428)
NEED TO DETERMINE THE IDEAL COB PANEL SIZE FOR YOUR VEHICLE?
- Step 1: Remove the existing interior light cover
- Step 2: Measure for the optimum vertical space as shown
- Step 3: Measure for the optimum horizontal space as shown
- Step 4: Reattach the cover of your interior light
- Step 5: Refer to the above COB panel sizing and ensure your optimum allowable space does not exceed the Lightforce options.
