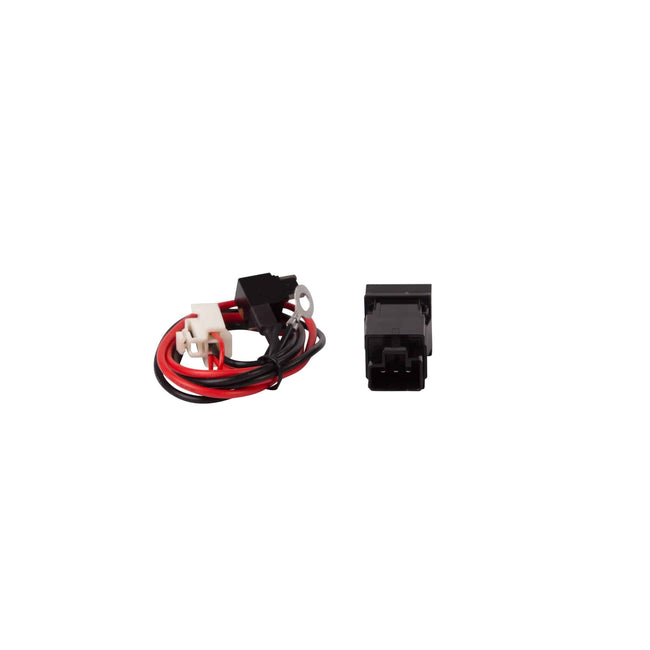

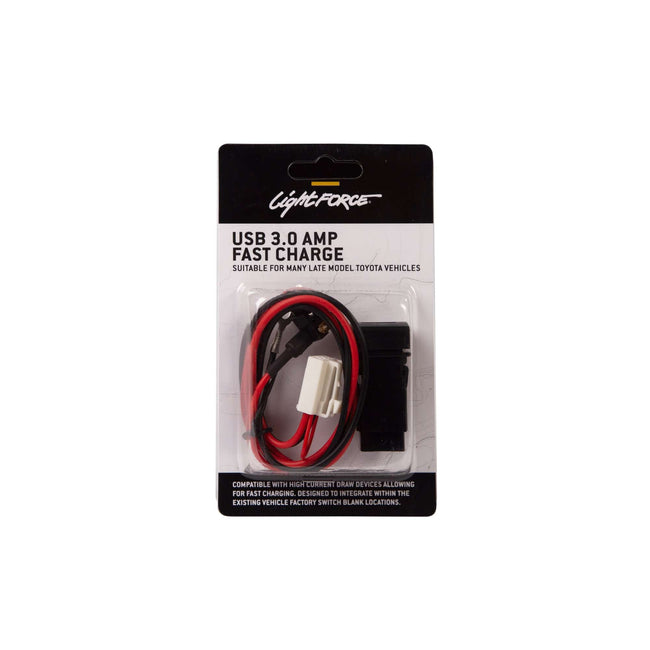

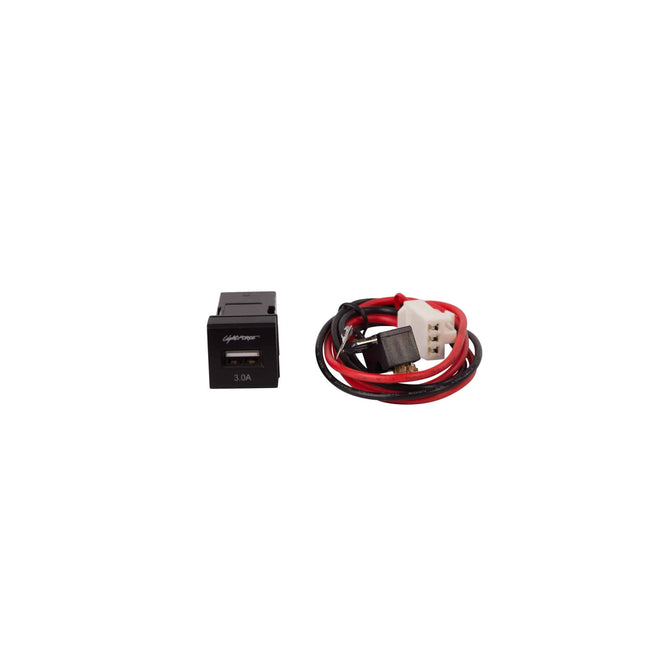

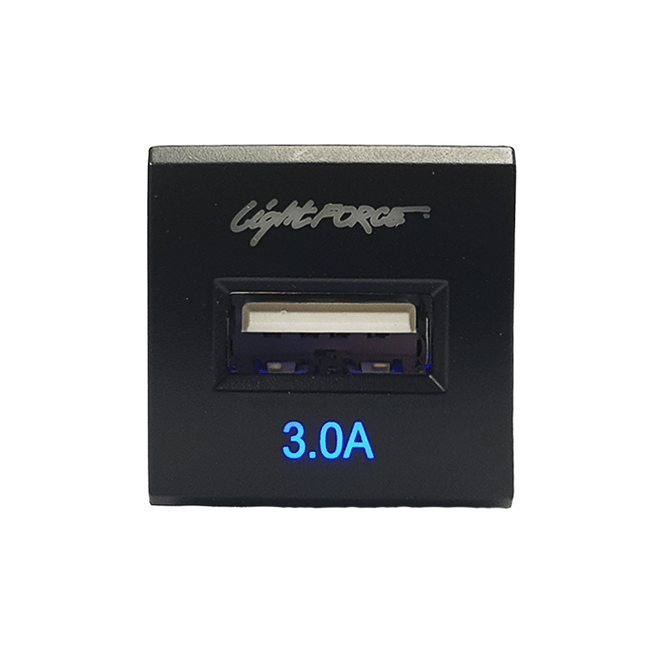

USB 3.0 AMP Fast Charge to suit Toyota 300 Series, Prado 250, Prado 150 & more

FEATURES

• Fast Charging 3.0 amps
• Pre terminated connections
• Fuse tap for direct fitment to fuse panel
• LED illumination can be integrated with dash light circuit.

Designed to integrate within the existing vehicle factory switch blank locations,
this Fast Charging 3.0 AMP USB is the ideal companion when you wish to charge
your devices on the go.

The Lightforce USB 3.0 Amp Fast Charge is compatible with high current devices
and is easy to install. It easily connects directly to the fuse panel via the included
fuse tap, and pre terminated negative ring terminal.

SPECIFICATIONS

• Input voltage: 12-24 volts DC
• Output voltage: 5 volts DC
• Output current: 3.0 Amps Fast Charge
• LED illumination: Blue
• Cable lengths: 600mm
• Product dimensions: 22.55mm (H) x 22.45 (W) x 50.50 (L)
• Integrates into existing factory switch blank locations
• Compact design
• Compatible with both Apple and Android devices.

Additional Information

The wiring can be changed to separate the LED illumination from the main input power

1.  Cut the thin red wired close to the base of the larger red wire and insulate
2. The thin red wire can now be extended to connect to the existing 12v dash light circuit
3. Insulate with tape

Vehicle Compatibility
